A series RLC circuit consists of a 70 Ω resistor, a 0.11 H inductor, and a 25 μF capacitor. It is attached to a 120 V/60 Hz power line. What is the peak current I at this frequency? What is the phase angle ϕ? What is the average power loss?
Added by David P.
Step 1
Given: R = 70 Ω Xl = 2πfL = 2π*60*0.11 = 41.47 Ω Xc = 1/(2πfC) = 1/(2π*60*25*10^-6) = 106.1 Ω Plugging in the values: Z = sqrt(70^2 + (41.47 - 106.1)^2) Z = sqrt(4900 + (-64.63)^2) Z = sqrt(4900 + 4179.7) Z = sqrt(9079.7) Z ≈ 95.3 Ω Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 95 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

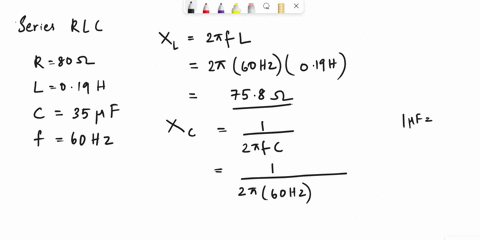

A series RLC circuit consists of a 80 Ω resistor, a 0.19 H inductor, and a 35 μF capacitor. It is attached to a 120 V/60 Hz power line. What is the phase angle ϕ? What is the average power loss?
Adi S.
A series RLC circuit consists of a 22 ̐ resistor, a 0.14 H inductor, and a 80 μF capacitor. It draws a 3.0 A rms current when attached to a 60 Hz source. What is the emf Erms ? 88 V What is the phase angle φ ? 42 degrees What is the average power loss? 2.0×10² W
Ankur S.

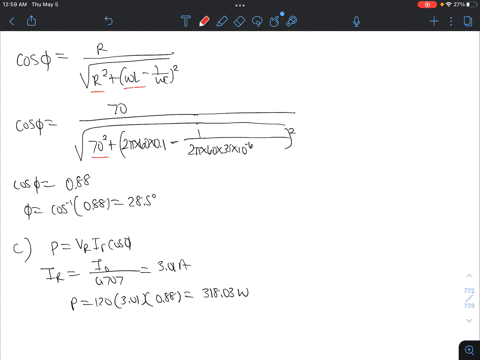

A series RLC circuit consists of a 70 ̩ resistor, a 0.10 H inductor, and a 35 μF capacitor. It is attached to a 120 V/60 Hz power line. Part B What is the phase angle ϕ? Express your answer in degrees. Part C What is the average power loss? Express your answer with the appropriate units.
Penny R.
