'A sign weighing 382 N is suspended at the end of a uniform rod 4.12 m long weighing 649 Nas shown below with a support cable making an angle of 45 deg with the support rod at its midpoint What is the tension in the support cable? 458 450 2.00 m 2.00 m'
Added by Miguel -Ngel W.
Step 1
06 m Show more…
Show all steps
Your feedback will help us improve your experience
Hubert Agamasu and 93 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

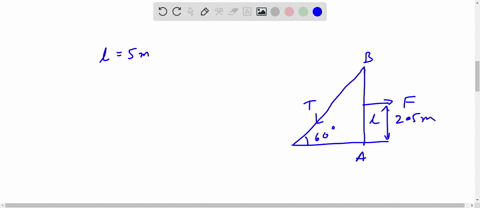

A rigid vertical rod of mass 90 kg and length 5.0 m is connected to the floor by a bolt through its lower end A. The rod also has a wire connected between its top end B and the floor as shown in the figure. A horizontal force F = 600 N is applied at the midpoint of the rod. What is the tension in the wire? B F 60° A 600 N 346 N 1200 N 1019 N
Supratim P.

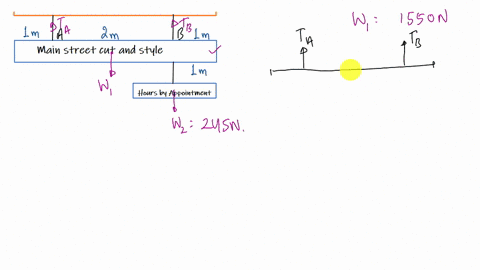

The sign shown in Fig. $7.48$ is $4.00 \mathrm{~m}$ long, weighs $1550 \mathrm{~N}$, and is made of uniform material. A weight of $245 \mathrm{~N}$ hangs $1.00 \mathrm{~m}$ from the end. Find the tension in each support cable.
Concurrent and Parallel Forces
Center of Gravity
In Fig. $12-46,$ a 50.0 kg uniform square sign, of edge length $L=2.00 \mathrm{m},$ is hung from a horizontal rod of length $d_{h}=3.00 \mathrm{m}$ and negligible mass. A cable is attached to the end of the rod and to a point on the wall at distance $d_{y}=4.00 \mathrm{m}$ above the point where the rod is hinged to the wall. (a) What is the tension in the cable? What are the (b) magnitude and (c) direction (left or right) of the horizontal component of the force on the rod from the wall, and the (d) magnitude and (e) direction (up or down) of the vertical component of this force?
