A simple electromagnet is shown below. What must the voltage setting $V_s$ be (in V) if the desired magnetic flux density $B = 5.0 \text{ mT}$? The interior of the coil is a magnetic material with $\mu_r = 200$ and the coil has no resistance. $V_s = $ _______ V
Added by Pamela R.
Close
Step 1
The magnetic flux density B is given by the equation B = μ₀ * μᵣ * N * I / (2 * π * r), where μ₀ is the permeability of free space (4π * 10^-7 T*m/A), μᵣ is the relative permeability of the magnetic material (given as 200), N is the number of turns in the coil Show more…
Show all steps
Your feedback will help us improve your experience
Satish Kumar and 66 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

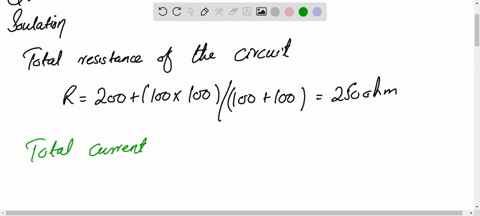

What is the magnetic flux density B (in mT) produced by the solenoid coil? Assume the interior of the coil is empty (vacuum) and the coil has no resistance.
Abid H.
The question has been attached as a photo.
Chasen S.

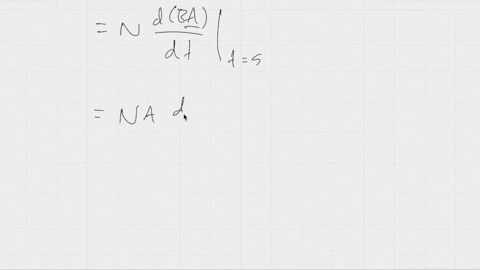

A 30-turn circular coil of radius 4.00 cm and resistance 1.00 V is placed in a magnetic field directed perpendicular to the plane of the coil. The magnitude of the magnetic field varies in time according to the expression B = 0.010 0t + 0.040 0t^2, where B is in teslas and t is in seconds. Calculate the induced emf in the coil at t = 5.00 s. (^ means power )
