A sinusoidal voltage of peak value 283 V and frequency 50 Hz is applied to a series LCR circuit in which R = 3 ?, L = 25.48 mH, and C = 796 µF. Find (a) the impedance of the circuit;
Added by Cooper C.
Step 1
Step 1: Calculate the angular frequency (ω) using the formula ω = 2πf, where f is the frequency given as 50 Hz. Show more…
Show all steps
Your feedback will help us improve your experience
Jaya M and 73 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A sinusoidal voltage of peak value 283V and frequency 50 Hz is applied to a LCR circuit in which r=3 ohm , L=25.48 mH and C=796*10^-6 F. Find impedance of the circuit.
Vipin K.

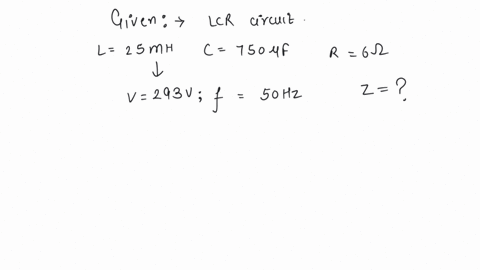

A sinusoidal voltage of peak value 293 V and frequency 50 Hz is applied to a series LCR circuit in which R = 6 , L = 25 mH and C = 750 F. The impedance of the circuit will be ?
Kamlesh G.
sinusoidal voltage of peak value 283V and frequency 50 Hz is applied to a LCR circuit in which r=3 ohm , L=25.48 mH and C=796*10^-6 F.. The inductive resistance= 8 ohm and capacitive reactance is 4 ohm , a)Calculate the phace difference between the voltage across the source and the current .b0power dissipated in the circuit c) power factor
