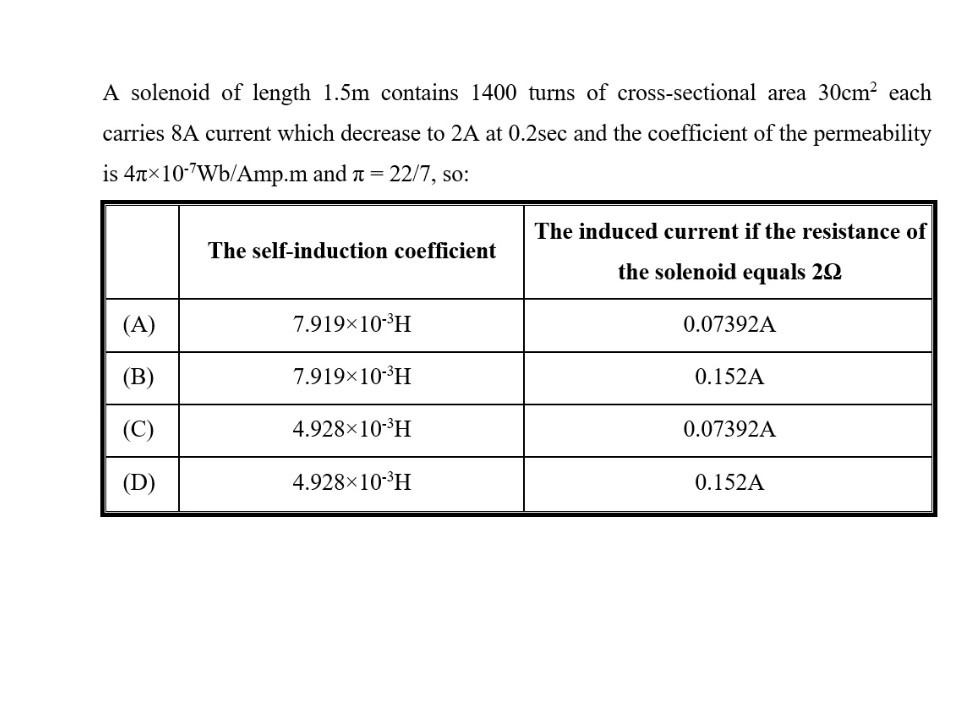

A solenoid of length 1.5 m contains 1400 turns of cross-sectional area \( 30 \mathrm{~cm}^{2} \) each carries 8 A current which decrease to 2 A at 0.2 sec and the coefficient of the permeability is \( 4 \pi \times 10^{-7} \mathrm{~Wb} / \mathrm{Amp} . \mathrm{m} \) and \( \pi=22 / 7 \), so: \begin{tabular}{|l|c|c|} \hline & The self-induction coefficient & \begin{tabular}{c} The induced current if the resistance of \\ the solenoid equals \( \mathbf{2} \boldsymbol{\Omega} \) \end{tabular} \\ \hline (A) & \( 7.919 \times 10^{-3} \mathrm{H} \) & 0.07392 A \\ \hline (B) & \( 7.919 \times 10^{-3} \mathrm{H} \) & 0.152 A \\ \hline (C) & \( 4.928 \times 10^{-3} \mathrm{H} \) & 0.07392 A \\ \hline (D) & \( 4.928 \times 10^{-3} \mathrm{H} \) & 0.152 A \\ \hline \end{tabular}
Added by Gregg M.
Close
Step 1
m} \) - \( N = 1400 \) (number of turns) - \( A = 30 \, \text{cm}^2 = 30 \times 10^{-4} \, \text{m}^2 \) - \( l = 1.5 \, \text{m} \) Substitute the values: \[ L = \frac{4\pi \times 10^{-7} \times 1400^2 \times 30 \times 10^{-4}}{1.5} \] Show more…
Show all steps
Your feedback will help us improve your experience
Nishant Kumar and 70 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

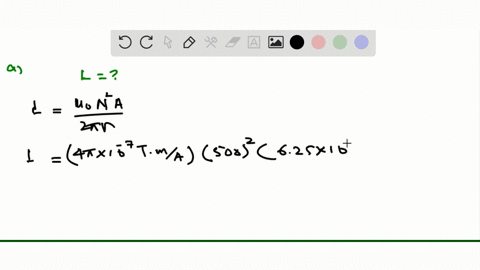

A toroidal solenoid has 500 turns, cross-sectional area $6.25 \mathrm{cm}^{2},$ and mean radius 4.00 $\mathrm{cm} .$ (a) Calculate the coil's self-inductance. (b) If the current decreases uniformly from 5.00 $\mathrm{A}$ to 2.00 $\mathrm{A}$ in 3.00 $\mathrm{ms}$ , calculate the self-induced emf in the coil. (c) The current is directed from terminal $a$ of the coil to terminal $b .$ Is the direction of the induced emf from $a$ to $b$ or from $b$ to $a ?$
