A steam radiator with a rating of 75 EDR is designed to supply A. 18,000 Btuh. B. 24,000 Btuh. C. 30,000 Btuh. D. 20,000 Btuh.
Added by Ruben M.
Step 1
EDR stands for Equivalent Direct Radiation, which is a measure of the heating capacity of a steam radiator. Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 98 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Which of the following types of heaters uses a special glass sheet with a metallic backing that serves as a heating element? A. Vertical discharge unit heater B. Solar panel-skylight C. Radiant-glass wall-mounted panel heater D. Ceiling-mounted cable radiant heater 2. What is the TD for an outdoor design temperature of 20°F and an indoor design temperature of 75°F? A. 35 B. 45 C. 55 D. 95 3. Which of the following is not a type of heat loss from a building? A. Radiation B. Circulation C. Convection D. Conduction 4. A circuit with a resistance of 25 ohms is carrying a current of 2 A. How much heat, in watts, is developed? A. 50 B. 100 C. 450 D. 1250 5. Using the degree day method, calculate the annual kWh use in Springfield, Illinois, with a heat loss of 12 kW, and an indoor design temperature of 70°F, and assuming 24-hour per day occupancy. A. 18,810 B. 23,512 C. 25,080 D. 34,466
Sri K.
Baskar P.

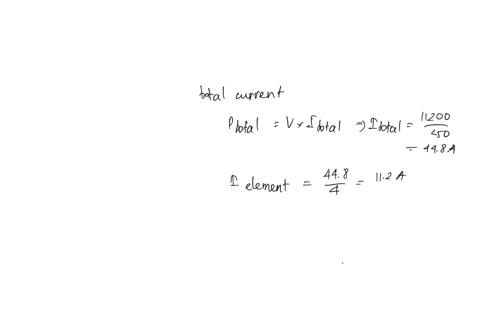

Four equally rated heating elements are contained in a forced air-heating unit. These are sometimes called FBUs (Fan Blower Units) because a blower motor forces air over the heating elements to provide heated air for a room. Figure 115.342 Forced-Air Heating Unit Your calculations will not include any power requirements for the blower motor in the FBU. The nameplate on the FBU indicates that it will deliver a total of 11.2 kW of heat when the supply circuit is 250 volts. 5. Refer to the illustration of the FBU and the information shown with Figure 115.342. The "hot" resistance of Element 3 (R3) is ____ ohms. a. 1.2857 b. 1.3951 c. 5.5804 d. 5.1429 e. 4.7246 6. Refer to the illustration of the FBU and the information shown with Figure 115.342. When operated at exactly 240 volts the actual power used by Element 4 (P4) is ____ kW. a. 10.332 b. 2.580 c. 11.200 d. 2.800 e. 14.064 Figure 116.418 The actual output voltage of the power supply is 472 volts. Hint: This is your applied voltage (Ea or ET). Element 1 (R1) is rated at 4.8 kW @ 250 volts and Element 2 (R2) is rated to put out 5.2 kW @ 240 volts. 7. Refer to Figure 116.418. The fixed resistance of Element 2 is ____ ohms. a. 21.3056 b. 11.4556 c. 11.0769 d. 22.0339 e. 8.8757
