Question

A steel pipeline, 2-in. schedule 40 pipe (ID: 2.067 in.; thickness: 0.154 in.), containing saturated steam at 121 C. The line is covered with 30.5 mm of insulation. Assuming that the inside surface of temperature of the metal wall is at 121.1 C and the outer surface of the insulation is at 26.7 C, calculate the heat loss for 24.4 m of pipe. The average k for steel is 45 W/ (m K) and the k for the insulation is 0.182.

Name: a steel pipeline 2 in schedule 40 pipe id 2067 in thickness 0154 in containing saturated steam at 121 c the line is covered with 305 mm of insulation assuming that the inside surface of temp 06726
Uploaded: 2022-02-17T16:49:29-08:00
Duration: 2 min 59 s
Channel: Sai Sai
Description: a steel pipeline 2 in schedule 40 pipe id 2067 in thickness 0154 in containing saturated steam at 121 c the line is covered with 305 mm of insulation assuming that the inside surface of temp 06726

          A steel pipeline, 2-in. schedule 40 pipe (ID: 2.067 in.;
thickness: 0.154 in.), containing saturated steam at 121 C. The
line is covered with 30.5 mm of insulation. Assuming that the
inside surface of temperature of the metal wall is at 121.1 C and
the outer surface of the insulation is at 26.7 C, calculate the
heat loss for 24.4 m of pipe. The average k for steel is 45 W/ (m
K) and the k for the insulation is 0.182.

Added by Erika R.

Geometry A Common Core Curriculum

Ron Larson, Laurie Boswell 1st Edition

Instant Answer

Solved by Expert Sai Sai

02/17/2022

Step 1

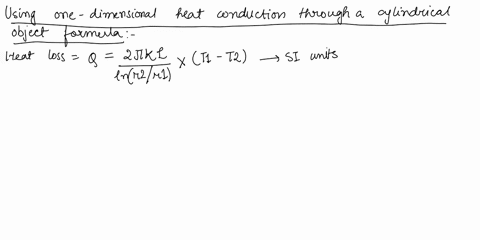

The formula for heat loss through a cylindrical wall is: Q = 2πkL(T1-T2)/ln(r2/r1) where: Q = heat loss (W) k = thermal conductivity (W/mK) L = length of the pipe (m) T1 = temperature inside the pipe (°C) T2 = temperature outside the pipe (°C) r1 = inner radius Show more…

Show all steps

Thanks for your feedback!

A steel pipeline, 2-in. schedule 40 pipe (ID: 2.067 in.; thickness: 0.154 in.), containing saturated steam at 121 C. The line is covered with 30.5 mm of insulation. Assuming that the inside surface of temperature of the metal wall is at 121.1 C and the outer surface of the insulation is at 26.7 C, calculate the heat loss for 24.4 m of pipe. The average k for steel is 45 W/ (m K) and the k for the insulation is 0.182.
