A step index fiber is made with a core of refractive index 1.36, a diameter of 49 μm, and a fractional refractive index change of 0.025. It is operated at a wavelength of 1.3 μm.
Added by Christina S.
Step 1
36, Δn = 0.025 Using the formula Δn = (n1 - n2) / n1, we can rearrange to find n2/n1 = 0.9975 Therefore, n2 = 1.36 * 0.9975 = 1.3554 Show more…
Show all steps
Your feedback will help us improve your experience
Suman K and 89 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A single-mode step index fiber has a core diameter of 7 μm and a core refractive index of 1.49. Estimate the shortest wavelength of light which allows single-mode operation when the relative refractive index difference for the fiber is 1%
Adi S.

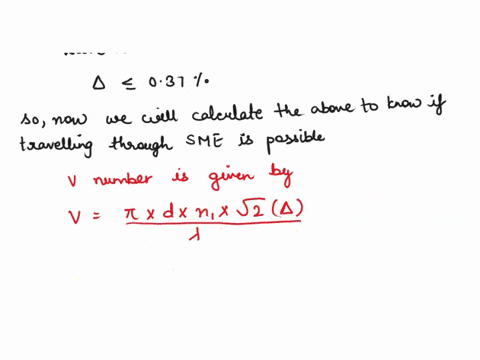

A single-mode step index fiber which is designed for operation at a wavelength of 1.3 μm has core and cladding refractive indices of 1.447 and 1.442 respectively. When the core diameter is 7.2 μm, confirm that the fiber will permit single-mode transmission and estimate the range of wavelengths over which this will occur.
Madhur L.
The step index fiber has a relative refractive index difference of $0.86 \%$ what is the critical angle at the core cladding interface? (A) $28.4^{\circ}$ (B) $82.4^{\circ}$ (C) $24.8^{\circ}$ (D) $75.6^{\circ}$
