A system of rigid body consists of three small balls (m1 = 4 kg, m2 = 5 kg, m3 = 6 kg) which are connected by massless rigid rod, is placed on a flat, frictioness table. The axis of rotation coincides with m1 and is perpendicular to the table, as shown in the figure. At t = 0, a force F with magnitude 20 N directed vertically downward acts on m2, causing the system which was initially at rest to rotate. Calculate: a) moment of inertia of the system with respect to axis of rotation, b) the magnitude of the torque acting on the system at t = 0, c) the magnitude of angular acceleration of the system at t = 0

          A system of rigid body consists of three small balls (m1 = 4 kg,
m2 = 5 kg, m3 = 6 kg) which are connected by massless rigid rod, is
placed on a flat, frictioness table. The axis of rotation coincides
with m1 and is perpendicular to the table, as shown in the figure.
At t = 0, a force F with magnitude 20 N directed vertically
downward acts on m2, causing the system which was initially at
rest to rotate. Calculate: a) moment of inertia of the system with
respect to axis of rotation, b) the magnitude of the torque
acting on the system at t = 0, c) the magnitude of angular
acceleration of the system at t = 0

Show more…

Added by Christopher P.

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
A system of rigid body consists of three small balls (m1 = 4 kg, m2 = 5 kg, m3 = 6 kg) which are connected by massless rigid rod, is placed on a flat, frictioness table. The axis of rotation coincides with m1 and is perpendicular to the table, as shown in the figure. At t = 0, a force F with magnitude 20 N directed vertically downward acts on m2, causing the system which was initially at rest to rotate. Calculate: a) moment of inertia of the system with respect to axis of rotation, b) the magnitude of the torque acting on the system at t = 0, c) the magnitude of angular acceleration of the system at t = 0
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Jennifer Stoner
David Collins verified

Madhur L and 68 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
mounted-on-a-low-mass-rod-of-length-028-m-are-four-balls-two-balls-shown-in-red-on-the-diagram-each-of-mass-072-kg-are-mounted-at-opposite-ends-of-the-rod-two-other-balls-each-of-mass-023-kg-30979

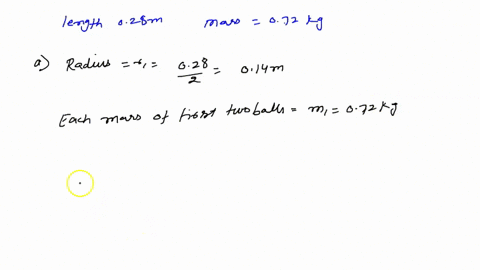

Mounted on a low-mass rod of length 0.28 m are four balls. Two balls (shown in red on the diagram), each of mass 0.72 kg, are mounted at opposite ends of the rod. Two other balls, each of mass 0.23 kg (shown in blue on the diagram), are each mounted a distance 0.07 m from the center of the rod. The rod rotates on an axle through the center of the rod (indicated by the "x" in the diagram), perpendicular to the rod, and it takes 0.9 seconds to make one full rotation. (a) What is the moment of inertia of the device about its center? I = kg·m^2 (b) What is the angular speed of the rotating device? ω = radians/s (c) What is the magnitude of the angular momentum of the rotating device? |L| = kg·m^2/s

Sri K.

a-barbell-is-mounted-on-a-nearly-frictionless-axle-through-its-center-the-low-mass-rod-has-a-length-d-022-m-and-each-ball-has-a-mass-m-03-kg-at-this-instant-there-are-two-forces-of-equal-mag-58386

A barbell is mounted on a nearly frictionless axle through its center. The low-mass rod has a length d = 0.22 m, and each ball has a mass m = 0.3 kg. At this instant, there are two forces of equal magnitude F applied to the system as shown, with the directions indicated, and at this instant the angular velocity is 50 radians/s, counterclockwise, and the angle ? = 30 degrees. In the next 0.003 s, the angular momentum relative to the center increases by an amount 4 ? 10-4 kg·m2/s. What is the magnitude of each force?

Shaiju T.

a-barbell-is-mounted-on-a-nearly-frictionless-axle-through-its-center-the-low-mass-rod-has-a-length-d-022-m-and-each-ball-has-a-mass-m-03-kg-at-this-instant-there-are-two-forces-of-equal-mag-58386

A barbell is mounted on a nearly frictionless axle through its center. The low-mass rod has a length d = 0.22 m, and each ball has a mass m = 0.3 kg. At this instant, there are two forces of equal magnitude F applied to the system as shown, with the directions indicated, and at this instant the angular velocity is 50 radians/s, counterclockwise, and the angle ? = 30 degrees. In the next 0.003 s, the angular momentum relative to the center increases by an amount 4 ? 10-4 kg·m2/s. What is the magnitude of each force?

Shaiju T.


*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,833 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,078 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,706 solutions

*

Transcript

-
00:01 Hello student, to solve the given question for part a, let us find the moment of inertia that will be calculated as m1 multiply by distance is 0 plus m2 multiply by the distance 3 square, that is r square, plus m3 multiply by distance 5 square.
00:19 Now plug in the value for masses here, we get the first term will be 0 plus 5 into 9 plus 6 into 25.
00:28 So from here we get the final answer for the moment of inertia that will be 195 kilogram meter square.
00:37 Similarly, using the relation for torque, that is force into distance, we get the value for part b.
00:46 Torque will be calculated here as 20 multiply by distance 3.
00:52 So from here we get the final answer for torque equals 60 newton meters.
00:58 For part c we can use the relation...
