Question

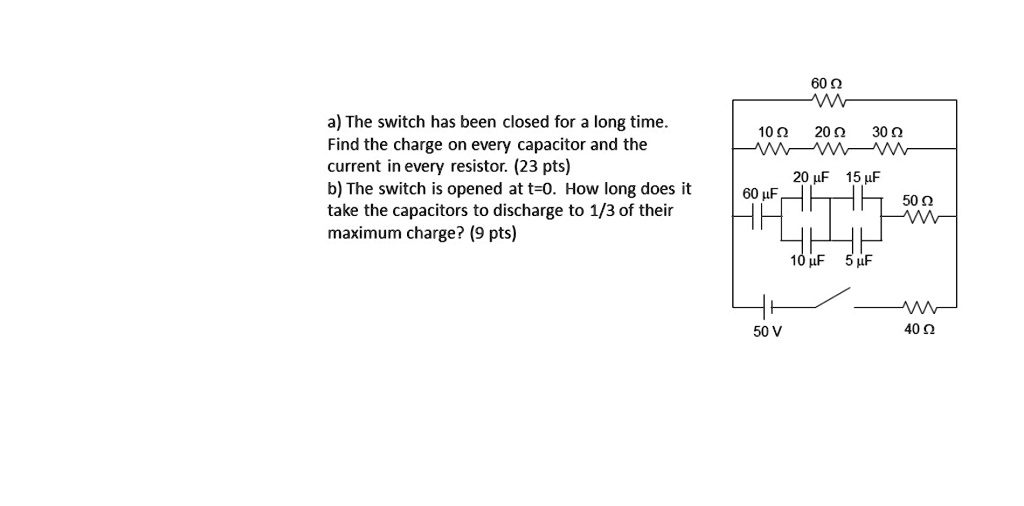

a) The switch has been closed for a long time. Find the charge on every capacitor and the current in every resistor. (23 pts) b) The switch is opened at t=0. How long does it take the capacitors to discharge to 1/3 of their maximum charge? (9 pts) 60 ? 10 ? 20 ? 30 ? 20 µF 15 µF 60 µF 50 ? 10 µF 5 µF 50 V 40 ?

          a) The switch has been closed for a long time.
Find the charge on every capacitor and the
current in every resistor. (23 pts)
b) The switch is opened at t=0. How long does it
take the capacitors to discharge to 1/3 of their
maximum charge? (9 pts)
60 ?
10 ? 20 ? 30 ?
20 µF 15 µF
60 µF
50 ?
10 µF 5 µF
50 V
40 ?

a) The switch has been closed for a long time.
Find the charge on every capacitor and the
current in every resistor. (23 pts)
b) The switch is opened at t=0. How long does it
take the capacitors to discharge to 1/3 of their
maximum charge? (9 pts)
60 ?
10 ? 20 ? 30 ?
20 µF 15 µF
60 µF
50 ?
10 µF 5 µF
50 V
40 ?

Added by Christopher C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

06/29/2022

Step 1

Given: - Capacitance values: C1 = 20 uF, C2 = 15 pF, C3 = 60 pF, C4 = 10 pF, C5 = 5 uF - Voltage: V = 50 V First, calculate the total capacitance in parallel for C2, C3, and C4: C234 = C2 + C3 + C4 = 15 pF + 60 pF + 10 pF = 85 pF Now, calculate the total Show more…

Show all steps
