A-Theoretical Part: 1. Consider the circuit below: three resistors (10?, 30?, and 20?) and two batteries (40V and 10V) that are connected in series. Make sure to pay attention to the way the two batteries are connected. 1. Predict the direction of the current: Is it Clockwise or Counterclockwise? 2. Using Kirchhoff's loop rule, calculate the magnitude of the current and its direction (i.e., clockwise or counterclockwise); call the magnitude of the current ITh. Make sure to show ALL your calculations. 3. Calculate the voltage across the 30? resistor; call this voltage VTh.

          A-Theoretical Part:

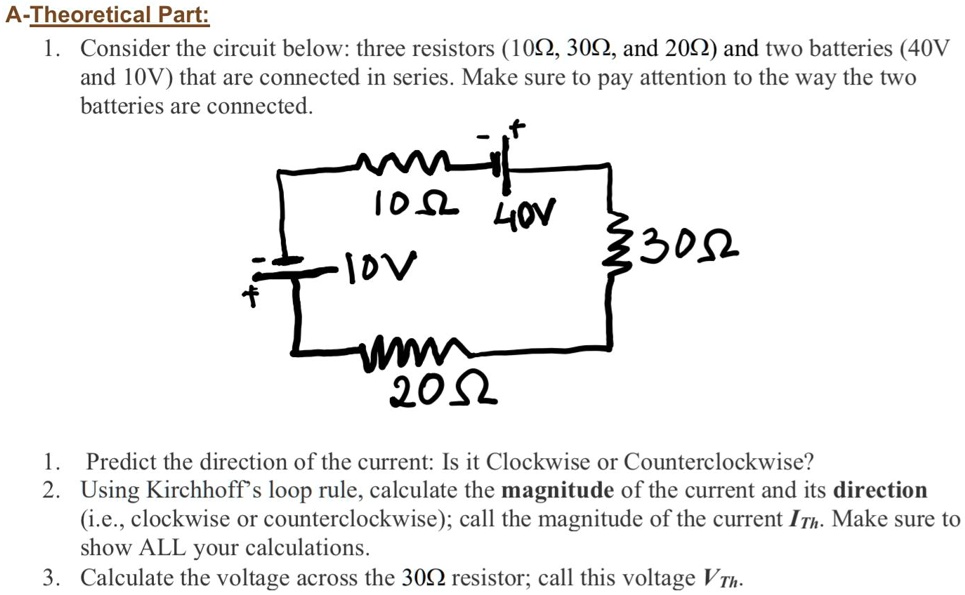

1. Consider the circuit below: three resistors (10?, 30?, and 20?) and two batteries (40V and 10V) that are connected in series. Make sure to pay attention to the way the two batteries are connected.

1. Predict the direction of the current: Is it Clockwise or Counterclockwise?
2. Using Kirchhoff's loop rule, calculate the magnitude of the current and its direction (i.e., clockwise or counterclockwise); call the magnitude of the current ITh. Make sure to show ALL your calculations.
3. Calculate the voltage across the 30? resistor; call this voltage VTh.

Show more…

A-Theoretical Part:
1. Consider the circuit below: three resistors (10?, 30?, and 20?) and two batteries (40V and 10V) that are connected in series. Make sure to pay attention to the way the two batteries are connected.

1. Predict the direction of the current: Is it Clockwise or Counterclockwise?
2. Using Kirchhoff's loop rule, calculate the magnitude of the current and its direction (i.e., clockwise or counterclockwise); call the magnitude of the current ITh. Make sure to show ALL your calculations.
3. Calculate the voltage across the 30? resistor; call this voltage VTh.

Added by Purificaci-N B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

07/26/2023

Step 1

The direction of the current: The current will flow from the higher potential to the lower potential. In this case, the 40V battery has a higher potential than the 10V battery, and they are connected in such a way that the positive terminal of the 40V battery is Show more…

Show all steps

lock

Thanks for your feedback!

A-Theoretical Part: 1. Consider the circuit below: three resistors (10Ω, 30Ω, and 20Ω) and two batteries (40V and 10V) that are connected in series. Make sure to pay attention to the way the two batteries are connected. 1. Predict the direction of the current: Is it Clockwise or Counterclockwise? 2. Using Kirchhoff's loop rule, calculate the magnitude of the current and its direction (i.e., clockwise or counterclockwise); call the magnitude of the current ITh. Make sure to show ALL your calculations. 3. Calculate the voltage across the 30Ω resistor; call this voltage VTh.
