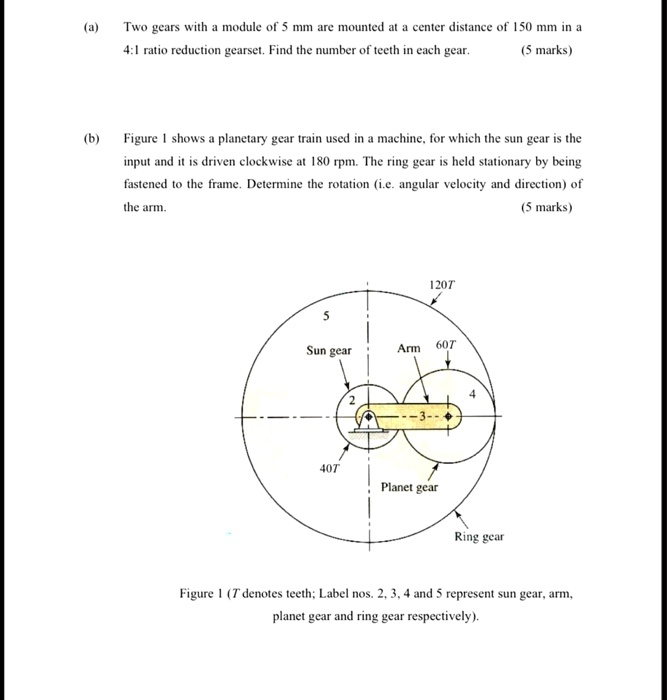

(a) Two gears with a module of 5 mm are mounted at a center distance of 150 mm in a 4:1 ratio reduction gearset. Find the number of teeth in each gear. (5 marks) (b) Figure 1 shows a planetary gear train used in a machine, for which the sun gear is the input and it is driven clockwise at 180 rpm. The ring gear is held stationary by being fastened to the frame. Determine the rotation (i.e. angular velocity and direction) of the arm. (5 marks) 120T 5 Sun gear Arm 60T 2 4 --3-- 40T Planet gear Ring gear Figure 1 (T denotes teeth; Label nos. 2, 3, 4 and 5 represent sun gear, arm, planet gear and ring gear respectively).
Added by Brett R.
Close
Step 1
(a) Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 101 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An epicyclic spur gear train, as shown in Figure, has a sun gear with 24 teeth and a planet gear with 35 teeth. Find the required number of teeth in the ring gear and determine the ratio between the arm and the ring gear if the sun gear is held stationary. Consider the arm to rotate at 2 rpm.
Madhur L.
Consider the compound planetary gear train that is commonly used in an electric drill or screwdriver, shown in the schematic diagram in Fig. 1. The gear and the arm dimensions are R1= 150 mm, R2A= R4A= 100 mm, and R3= R4= R5= R6= 50 mm. The angular velocity of the input shaft (and arm 2) is ω2A= 10 rad/s ccw (looking from the left), and ring gear 1 is fixed. Determine the angular velocities of gears 3, 4, 5, and 6. Figure 1 Schematic diagram of a compound planetary gear train
Sri K.
In the two-stage planetary gear train shown in Figure Q1, gear 6 is fixed and crank arms C and D are attached to the output shaft. Gears 3 and 4 form a compound wheel that rotates freely about the output shaft. The numbers of teeth in the gear wheels are as follows: N1 = 20, N3 = 72, N4 = 24, and N6 = 64. Gear A rotates at 300 r/min clockwise. Determine: 1.1 The speed and direction of rotation of the output shaft (10) 1.2 The torque required to hold gear 6 when the gear is transmitting 12 kilowatts with negligible friction losses. (4) [14]
