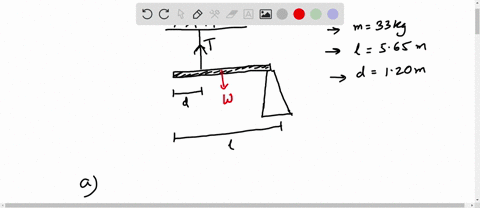

A uniform 33.0-kg beam of length â„“ = 5.65 m is supported by a vertical rope located d = 1.20 m from its left end as in the figure below. The right end of the beam is supported by a vertical column. A beam of length â„“ is suspended from a rope and supported by a vertical column. The rope is attached at a point that is a distance d from the left end of the beam. The column is beneath the right end of the beam. (a) Find the tension in the rope. N (b) Find the force that the column exerts on the right end of the beam. (Enter the magnitude.) N
Added by Abby L.
Step 1
8 \, \text{m/s}^2 \) (weight of the beam) \( L = 5.65 \, \text{m} \) (length of the beam) \( D = 1.20 \, \text{m} \) (distance from the left end to the rope attachment point) Show more…
Show all steps
Your feedback will help us improve your experience
Supratim Pal and 53 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Supratim P.
A uniform 33.5-kg beam of length â„“ = 6.00 m is supported by a vertical rope located d = 1.20 m from its left end as in the figure below. The right end of the beam is supported by a vertical column. A beam of length â„“ is suspended from a rope and supported by a vertical column. The rope is attached at a point that is a distance d from the left end of the beam. The column is beneath the right end of the beam. (a) Find the tension in the rope. (b) Find the force that the column exerts on the right end of the beam. (Enter the magnitude.)
Timothy J.

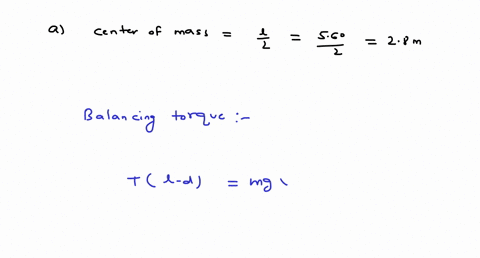

A uniform 35.5-kg beam of length â„“ = 5.60 m is supported by a vertical rope located d = 1.20 m from its left end as shown in the figure below. The right end of the beam is supported by a vertical column. (a) Find the tension in the rope. (b) Find the force that the column exerts on the right end of the beam. (Enter the magnitude.)
Narayan H.
