Question

A wire of length $\ell$ = 0.65 m is conducting a current of $i$ = 8.5 A toward the top of the page and through a $B$ = 5.0 T uniform magnetic field directed into the page, as shown in the figure. What is the magnitude $F$ of the magnetic force on the wire? $F$ = What is the direction of the magnetic force on the wire? left out of the screen down up N B i

          A wire of length $\ell$ = 0.65 m is conducting a current of
$i$ = 8.5 A toward the top of the page and through a
$B$ = 5.0 T uniform magnetic field directed into the page, as
shown in the figure.
What is the magnitude $F$ of the magnetic force on the wire?
$F$ =
What is the direction of the magnetic force on the wire?
left
out of the screen
down
up
N
B
i

A wire of length ℓ = 0.65 m is conducting a current of
i = 8.5 A toward the top of the page and through a
B = 5.0 T uniform magnetic field directed into the page, as
shown in the figure.
What is the magnitude F of the magnetic force on the wire?
F =
What is the direction of the magnetic force on the wire?
left
out of the screen
down
up
N
B
i

Added by Encarnacion W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

03/31/2022

Step 1

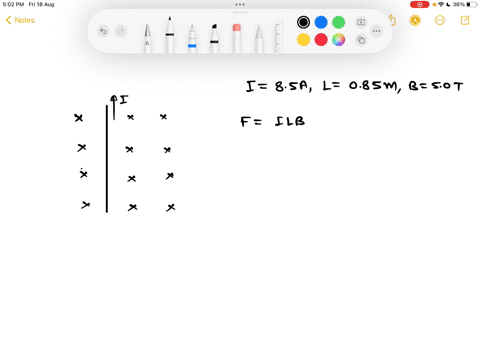

Step 1: Calculate the magnetic force using the formula F = BIL*sin(theta), where B is the magnetic field strength, I is the current, L is the length of the wire, and theta is the angle between the current and the magnetic field. Show more…

Show all steps

Thanks for your feedback!

A wire of length l=0.65m is conducting a current of i=8.5 A toward the top of the page and through a B=5.0T uniform magnetic field directed into the page, as shown in the figure. What is the magnitude F of the magnetic force on the wire? F= What is the direction of the magnetic force on the wire? left out of the screen down up A wire of length = 0.65 m is conducting a current of i = 8.5 A toward the top of the page and through a B = 5.0 T uniform magnetic field directed into the page, as shown in the figure. What is the magnitude F of the magnetic force on the wire? N B What is the direction of the magnetic force on the wire? O left out of the screen O down up
