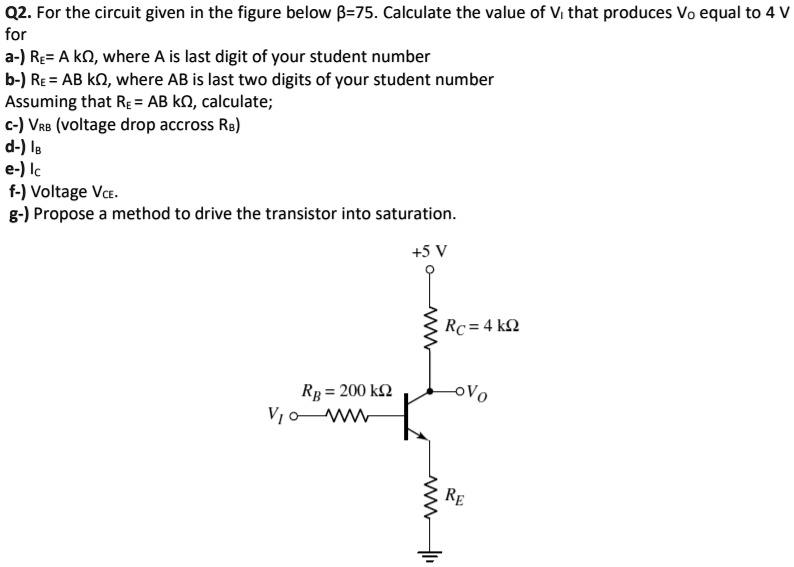

Q2. For the circuit given in the figure below ?=75. Calculate the value of VI that produces VO equal to 4 V for a-) RE= A k?, where A is last digit of your student number b-) RE = AB k?, where AB is last two digits of your student number Assuming that RE = AB k?, calculate; c-) VRB (voltage drop accross RB) d-) IB e-) IC f-) Voltage VCE. g-) Propose a method to drive the transistor into saturation. +5 V RC = 4 k? RB = 200 k? VI VO RE

          Q2. For the circuit given in the figure below ?=75. Calculate the value of VI that produces VO equal to 4 V
for
a-) RE= A k?, where A is last digit of your student number
b-) RE = AB k?, where AB is last two digits of your student number
Assuming that RE = AB k?, calculate;
c-) VRB (voltage drop accross RB)
d-) IB
e-) IC
f-) Voltage VCE.
g-) Propose a method to drive the transistor into saturation.
+5 V
RC = 4 k?
RB = 200 k?
VI
VO
RE

Q2. For the circuit given in the figure below ?=75. Calculate the value of VI that produces VO equal to 4 V
for
a-) RE= A k?, where A is last digit of your student number
b-) RE = AB k?, where AB is last two digits of your student number
Assuming that RE = AB k?, calculate;
c-) VRB (voltage drop accross RB)
d-) IB
e-) IC
f-) Voltage VCE.
g-) Propose a method to drive the transistor into saturation.
+5 V
RC = 4 k?
RB = 200 k?
VI
VO
RE

Added by Joshua W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

07/19/2023

Step 1

Show all steps

Thanks for your feedback!

Q2. For the circuit given in the figure below, B = 75. Calculate the value of Vi that produces Vo equal to 4 V for: a) R = A k, where A is the last digit of your student number b) RE = AB kQ, where AB is the last two digits of your student number. Assuming that RE = AB kQ, calculate: c) VRs (voltage drop across R) d) Ig e) Ic f) Voltage VcE g) Propose a method to drive the transistor into saturation.
