a) A lever AB is hinged at C and attached to a control cable at A as shown in Figure 1. If the l

Question

Aparna Shakti · Accepted Answer

First, we need to resolve the forces into their components. The 200 N force at B is acting horiz

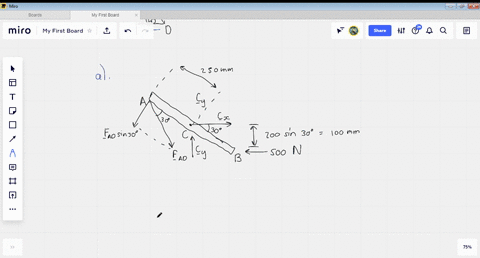

a) A lever AB is hinged at C and attached to a control cable at A as shown in Figure 1. If the lever is subjected to a 200 N horizontal force at B. Determine; (i) the tension in the cable (AD). (ii) the reaction at C. Figure 1: A three-force frame system
