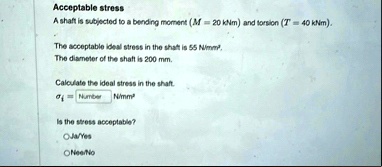

          Acceptable stress
A shaft is subjected to a bending moment ($M = 20$ kNm) and torsion ($T = 40$ kNm).
The acceptable ideal stress in the shaft is 55 N/mm$^2$.
The diameter of the shaft is 200 mm.
Calculate the ideal stress in the shaft.
$\sigma_i =$ Number N/mm$^2$
Is the stress acceptable?
Ja/Yes
Nee/No

acceptable stress a shaft is subjected to a bending moment m 20 knm and torsion t 40 knm the acceptable ideal stress in the shaft is 55 nmm2 the diameter of the shaft is 200 mm calculate the 38515

Added by Lisa B.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Breanna Ollech

05/25/2024

Step 1

Given: Bending moment, $M = 20$ kNm Torsion, $T = 40$ kNm Acceptable ideal stress, $\sigma_{i,acc} = 55$ N/mm$^2$ Diameter of the shaft, $d = 200$ mm Goal: 1. Calculate the ideal stress ($\sigma_i$) in the shaft. 2. Determine if the calculated ideal stress is Show more…
