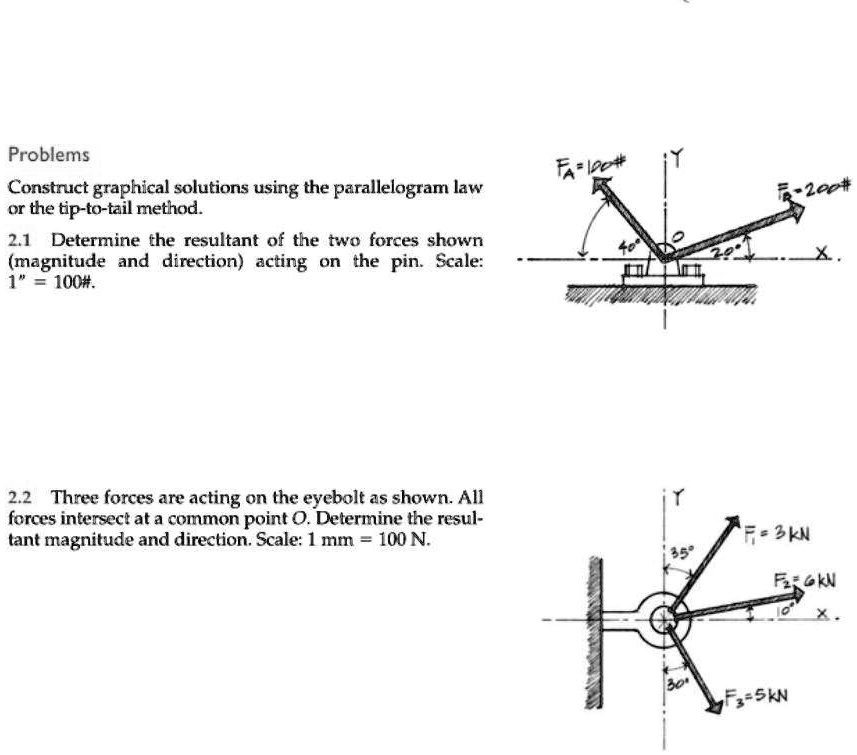

Problems Construct graphical solutions using the parallelogram law or the tip-to-tail method. 2.1 Determine the resultant of the two forces shown (magnitude and direction) acting on the pin. Scale: 1" = 100#. 2.2 Three forces are acting on the eyebolt as shown. All forces intersect at a common point O. Determine the resul- tant magnitude and direction. Scale: 1 mm = 100 N.

          Problems
Construct graphical solutions using the parallelogram law
or the tip-to-tail method.
2.1 Determine the resultant of the two forces shown
(magnitude and direction) acting on the pin. Scale:
1" = 100#.
2.2 Three forces are acting on the eyebolt as shown. All
forces intersect at a common point O. Determine the resul-
tant magnitude and direction. Scale: 1 mm = 100 N.

Problems
Construct graphical solutions using the parallelogram law
or the tip-to-tail method.
2.1 Determine the resultant of the two forces shown
(magnitude and direction) acting on the pin. Scale:
1" = 100#.
2.2 Three forces are acting on the eyebolt as shown. All
forces intersect at a common point O. Determine the resul-
tant magnitude and direction. Scale: 1 mm = 100 N.

Added by Ivan C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Aishwarya Krishnakumar

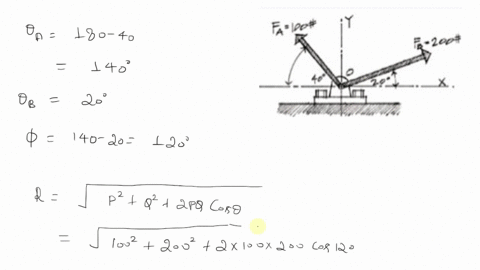

Step 1

1, we need to determine the resultant of the two forces acting on the pin. To do this, we can use the parallelogram law or the tip-to-tail method. The parallelogram law states that if two vectors acting simultaneously at a point can be represented both in magnitude Show more…

Show all steps

Thanks for your feedback!

Text: Advanced Physics Problems FA=00# Construct graphical solutions using the parallelogram law or the tip-to-tail method. 200# 2.1 Determine the resultant of the two forces shown in magnitude and direction acting on the pin. Scale: 1"=100#. 2.2 Three forces are acting on the eyebolt as shown. All forces intersect at a common point O. Determine the resultant magnitude and direction. Scale: 1mm = 100N. =3kN F = CkN OKN
