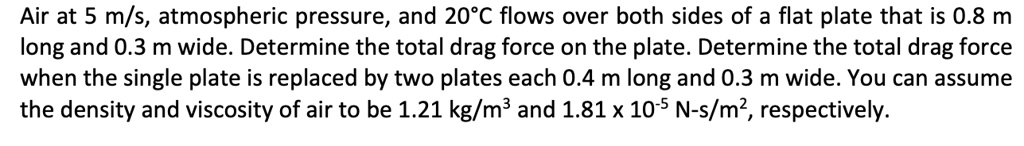

Air at 5 m/s, atmospheric pressure, and 20°C flows over both sides of a flat plate that is 0.8 m long and 0.3 m wide. Determine the total drag force on the plate. Determine the total drag force when the single plate is replaced by two plates each 0.4 m long and 0.3 m wide. You can assume the density and viscosity of air to be 1.21 kg/m³ and 1.81 x 10-5 N-s/m², respectively.
Added by Ruben W.
Close
Step 1
Reynolds number (Re) is given by: Re = (ρ * V * L) / μ where ρ = 1.21 kg/m³ (density of air), V = 5 m/s (velocity), L = 0.8 m (length of the plate), and μ = 1.81 x 10^-5 N-s/m² (viscosity of air). Re = (1.21 * 5 * 0.8) / (1.81 x 10^-5) Re ≈ 267,403 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 64 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

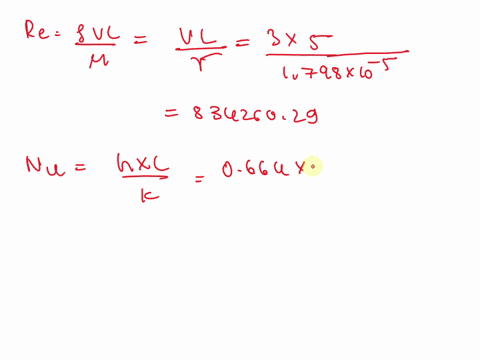

Air at 1 atm and 20°C flows over the upper surface of a 5 m long flat plate whose temperature is 80°C with a velocity of 3 m/s, as shown. Determine the forced convection heat transfer coefficient and the air rate of heat transfer per unit width of the entire plate. Use density = 1.092 kg/m³, conduction coefficient of the plate (k) = 0.02735 W/mK, Prandtl number (Pr) = 0.7228, and kinematic viscosity = 1.798x10⁻⁶ m²/s. (Ans: 2.98 W/m²·K, 178.63 W)
Madhur L.
Sri K.

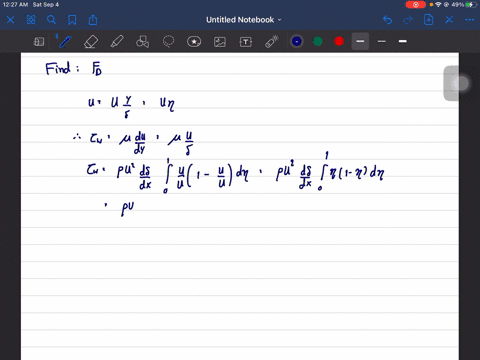

Water at $10^{\circ} \mathrm{C}$ flows over a flat plate at a speed of $0.8 \mathrm{m} /$ s. The plate is $0.35 \mathrm{m}$ long and $1 \mathrm{m}$ wide. The boundary layer on each surface of the plate is laminar. Assume that the velocity profile may be approximated as linear. Determine the drag force on the plate.
