Question

Air is drawn into a windtunnel used for testing cars as shown in the Figure. Determine the manometer reading, h, when the velocity in the test section is 60 mph. Note that there is a 1inch column of oil on the water in the manometer. Wind tunnel 60 mph Open h 1 in. Water Oil ($$SG = 0.9$$) Fan 0.75 inch 0.54 inch 0.67 inch 0.91 inch

Name: air is drawn into a windtunnel used for testing cars as shown in the figure determine the manometer reading h when the velocity in the test section is 60 mph note that there is a 1inch colum 56017
Uploaded: 2022-01-30T10:04:08-08:00
Duration: 1 min 56 s
Channel: Hast Aggarwal
Description: air is drawn into a windtunnel used for testing cars as shown in the figure determine the manometer reading h when the velocity in the test section is 60 mph note that there is a 1inch colum 56017

          Air is drawn into a windtunnel used for testing cars as shown in the Figure. Determine the manometer reading, h, when the velocity in the test section is 60 mph. Note that there is a 1inch column of oil on the water in the manometer.
Wind tunnel
60 mph
Open
h
1 in.
Water
Oil ($$SG = 0.9$$)
Fan
0.75 inch
0.54 inch
0.67 inch
0.91 inch

air is drawn into a windtunnel used for testing cars as shown in the figure determine the manometer reading h when the velocity in the test section is 60 mph note that there is a 1inch colum 56017

Added by Emily M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Hast Aggarwal

01/30/2022

Step 1

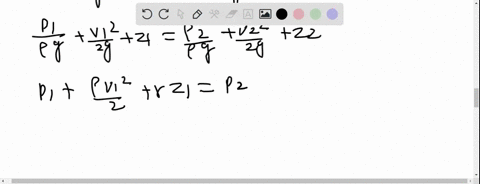

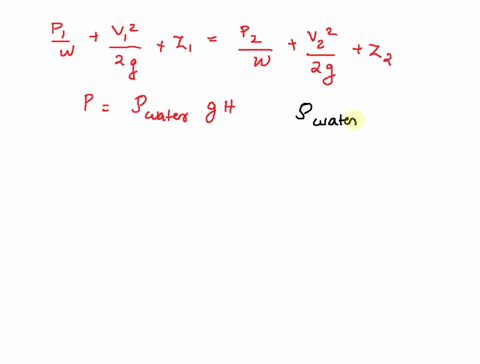

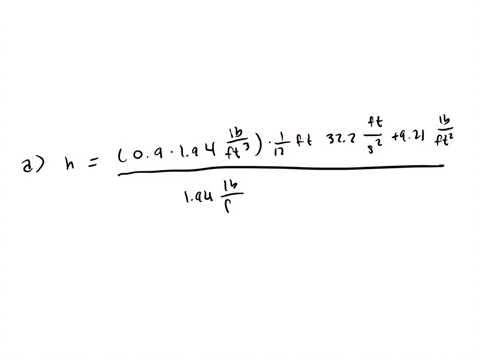

Given velocity $$V = 60 \text{ mph}$$. We know that $$1 \text{ mile} = 5280 \text{ feet}$$ and $$1 \text{ hour} = 3600 \text{ seconds}$$. $$V = 60 \text{ mph} \times \frac{5280 \text{ ft}}{1 \text{ mile}} \times \frac{1 \text{ hr}}{3600 \text{ s}} = \frac{60 Show more…
