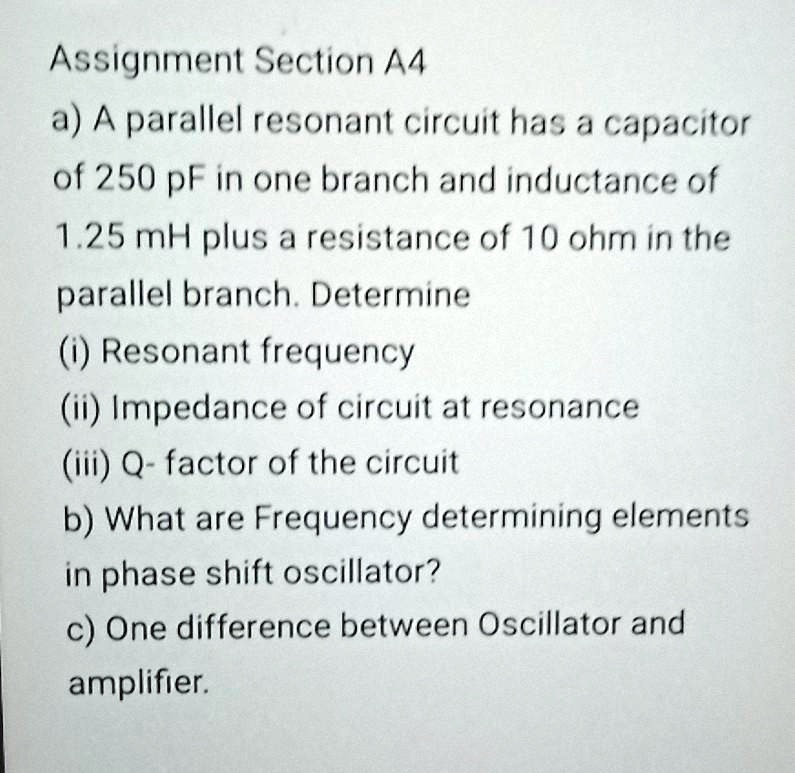

Assignment Section A4 a) A parallel resonant circuit has a capacitor of 250 pF in one branch and inductance of 1.25 mH plus a resistance of 10 ohm in the parallel branch. Determine (i) Resonant frequency (ii) Impedance of circuit at resonance (iii) Q- factor of the circuit b) What are Frequency determining elements in phase shift oscillator? c) One difference between Oscillator and amplifier.
Added by Nancy B.
Close
Step 1
Substituting the given values: f = 1 / (2π√(1.25 x 10^-3 H * 250 x 10^-12 F)) = 9.01 MHz (ii) The impedance (Z) of a parallel resonant circuit at resonance is given by the formula: Z = R where R is the resistance. So, the impedance at resonance is 10 Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 63 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A circuit consists of a variable frequency A.C. voltage source that supplies 120V peak, and a 10 Ohms resistor, a 150 μF capacitor, and a 150 mH inductor, all in series. Please include the formula for each part. A) Calculate the RMS voltage. B) Calculate the resonant frequency. C) Calculate the inductive reactance at the resonant frequency. D) Calculate the quality factor for the resonant circuit.
Khoobchandra A.
Problem 8: An LC circuit consists of a 2.75 mH inductor and a 7.5 μF capacitor. Randomized Variables L = 2.75 mH C = 7.5 μF f1 = 55 Hz f2 = 11 kHz Part (a) Find its impedance Z at 55 Hz in Ω. Part (b) Find its impedance Z at 11 kHz in Ω.
Shaiju T.

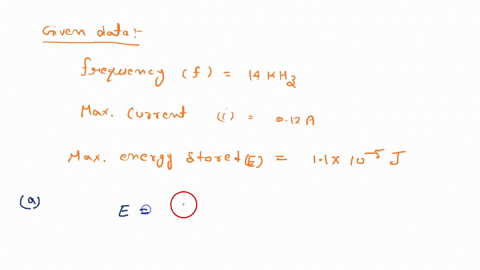

For your final exam in electronics, you're asked to build an LC circuit that oscillates at 14 kHz. In addition, the maximum current must be 0.12 A and the maximum energy stored in the capacitor must be 1.1x10^-5 J. Part A: What values of inductance and capacitance must you use? Express your answer to two significant figures and include the appropriate units. L = Value: Units: Part B: Express your answer to two significant figures and include the appropriate units. C = Value: Units:
Suman K.
