An AC source with an rms voltage of 120 V at 60.0 Hz is connected in series with a capacitor (C = 135 ?F) and a resistor (R = 29.0 ?). (a) Determine the power factor. (b) Determine the value of the inductance needed to have a power factor of 1. mH
Added by Hunter M.
Close
Step 1
0 Ω). Given: Capacitance, C = 135 µF = 135 x 10^-6 F Resistance, R = 29.0 Ω Frequency, f = 60.0 Hz Impedance, Z = sqrt(R^2 + (1/(2*pi*f*C))^2) Calculate: Z = sqrt((29)^2 + (1/(2*3.14*60*135*10^-6))^2) ** Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 80 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A $120-V$ (rms), 60 -Hz power supply is connected to an $R L C$ series circuit with $R=150 \Omega, L=1.20 \mathrm{mH},$ and $C=33.5 \mu \mathrm{F}$ Find (a) the reactance of the capacitor and inductor, (b) the circuit impedance, and (c) the peak current.

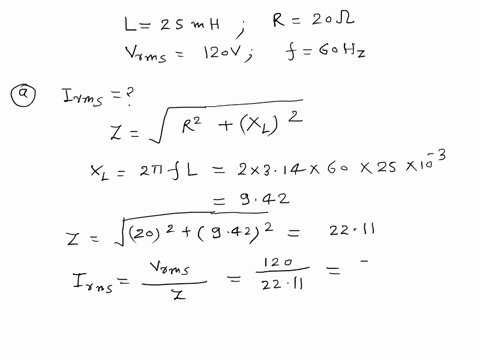

In an LR circuit, a 120 V(rms), 60.0 Hz source is in series with a 25.0 mH inductor and a 20.0 ? resistor. What are (a) the rms current and (b) the power factor? (c)What capacitor must be added in series to make the power factor 1? (d) To what value can the supply voltage be reduced if the power supplied is to be the same as that provided before installation of the capacitor?
Madhur L.
31.26. An $L-R-C$ series circuit with $L=0.120 \mathrm{H}, R=240 \Omega,$ and $C=7.30 \mu$ F carries an rms current of 0.450 A with a frequency of 400 $\mathrm{Hz}$ (a) What are the phase angle and power factor for this circuit? (b) What is the impedance of the circuit? (c) What is the rms voltage of the source? (d) What average power is delivered by the source? (e) What is the average rate at which electrical energy is converted to thermal energy in the resistor? (f) What is the average rate at which electrical energy is dissipated (converted to other forms) in the capacitor? (g) In the inductor?
