An AC voltage $V_{in}$ with RMS value of 50 mV is applied to the base of the amplifier circuit in the figure below. $V_{cc}$ 25 V $R_1$ 47 k$Omega$ $R_C$ 10 k$Omega$ $V_{out}$ $C$ $V_{in}$ O $eta_{DC} = 150$ 1 $mu F$ $R_2$ 4.7 k$Omega$ $R_E$ 1.0 k$Omega$ 1) Calculate the peak value of the output voltage. 2) Find the DC collector voltage on which the output voltage signal is riding. 3) Draw the output voltage waveform. Hint: The signal voltage gain is $A_v = R_C / R_E$.

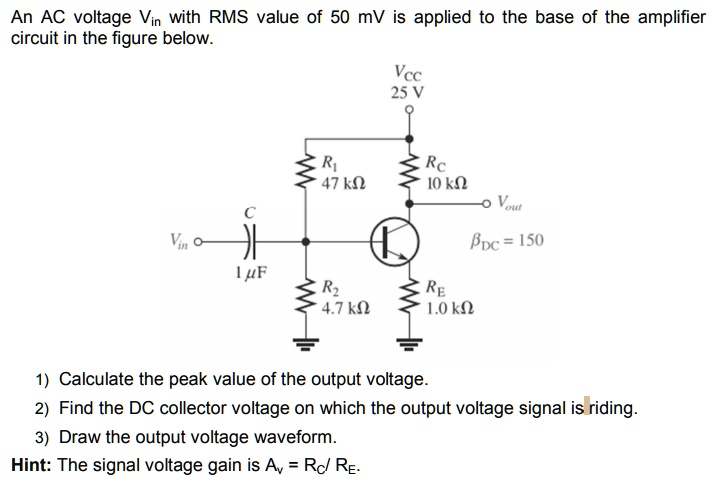

          An AC voltage $V_{in}$ with RMS value of 50 mV is applied to the base of the amplifier circuit in the figure below.
$V_{cc}$
25 V
$R_1$
47 k$Omega$
$R_C$
10 k$Omega$
$V_{out}$
$C$
$V_{in}$ O
$eta_{DC} = 150$
1 $mu F$
$R_2$
4.7 k$Omega$
$R_E$
1.0 k$Omega$
1) Calculate the peak value of the output voltage.
2) Find the DC collector voltage on which the output voltage signal is riding.
3) Draw the output voltage waveform.
Hint: The signal voltage gain is $A_v = R_C / R_E$.
