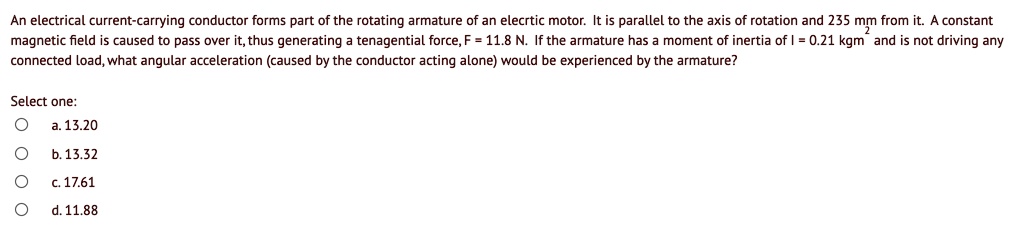

An electrical current-carrying conductor forms part of the rotating armature of an elecrtic motor. It is parallel to the axis of rotation and 235 mm from it. A constant magnetic field is caused to pass over it, thus generating a tenagential force, F = 11.8 N. If the armature has a moment of inertia of I = 0.21 kgm² and is not driving any connected load, what angular acceleration (caused by the conductor acting alone) would be experienced by the armature?
Added by Tom-S W.
Close
Step 1
The torque (τ) acting on the armature can be calculated using the formula τ = F * r, where F is the tangential force and r is the distance from the axis of rotation. In this case, F = 11.8 N and r = 235 mm = 0.235 m. Therefore, τ = 11.8 N * 0.235 m = 2.773 Nm. Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A flat, 118-turn, current-carrying loop is immersed in a uniform magnetic field. The area of the loop is 6.71 cm^2 and the angle between its magnetic dipole moment and the field is 32.3°. Find the strength of the magnetic field that causes a torque of 1.27×10^-5 N·m to act on the loop when a current of 3.09 mA flows in it.
Madhur L.

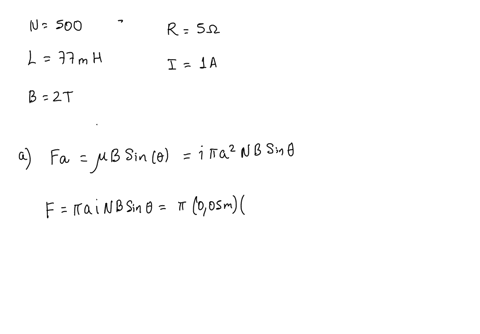

An alternating-current electric motor includes a thin, hollow, cylindrical spool (similar to a ring) with mass $M=1.11 \mathrm{~kg}$ and radius $a=5.00 \mathrm{~cm}$ wrapped $N=500$ times with a copper wire with resistance $R=5.00 \Omega$ and inductance $L=77.0 \mathrm{mH}$. Within the spool is a battery that supplies current $I=1.00 \mathrm{~A},$ which makes the spool a magnetic dipole with dipole moment $\overrightarrow{\boldsymbol{\mu}}$ parallel to the cylinder axis. A constant magnetic field with magnitude $B=2.00 \mathrm{~T}$ is supplied by an external stator magnet, while the spool turns freely on an axis perpendicular to its own axis. At a certain time, a bar is inserted, stopping the spool's motion (Fig. P30.51). At that instant the angle between the spool
A flat, 104-turn current-carrying loop is immersed in a uniform magnetic field. The area of the loop is 8.47 cm² and the angle between its magnetic dipole moment and the field is 51.1°. Find the strength of the magnetic field that causes a torque of 1.41 × 10⁻⁵ N·m to act on the loop when a current of 2.39 mA flows in it. Strength of the magnetic field: 8.60 T
