An engine working on otto cycle has the bore of 10 cm and crank radius of 7.5 cm. The clearance volume of the engine is 196.3 cc. Calculate (a) Clearance ratio. (b) Air standard efficiency.
Added by Teresa C.
Step 1
The stroke length is twice the crank radius. \[ \text{Stroke length} = 2 \times \text{Crank radius} = 2 \times 7.5 \, \text{cm} = 15 \, \text{cm} \] Show more…
Show all steps
Close
Your feedback will help us improve your experience
Shaiju T and 71 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
An engine operating on the Otto cycle has a stroke length of 100 mm and a piston diameter of 50 mm. What is the maximum clearance volume which will give an air standard efficiency of 60%?
Supreeta N.

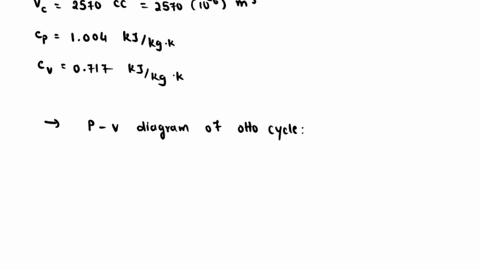

A gas engine working on the Otto cycle has a cylinder of diameter 400mm and stroke 300 mm. The clearance volume is 2570 cc. Find the air-standard efficiency. Assume Cp = 1.004 kJ/kg K and Cv = 0.717 kJ/kg K for air
Sri K.

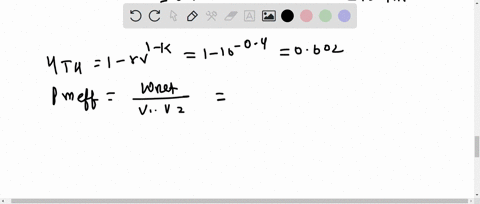

A four-stroke gasoline engine has a compression ratio of 10: 1 with four cylinders of total displacement $75 \mathrm{in} .^{3} .$ The inlet state is $500 \mathrm{R}$ 10 psia and the engine is running at 2100 RPM, with the fuel adding $600 \mathrm{Btu} / \mathrm{lbm}$ in the combustion process. What is the net work in the cycle and how much power is produced?
