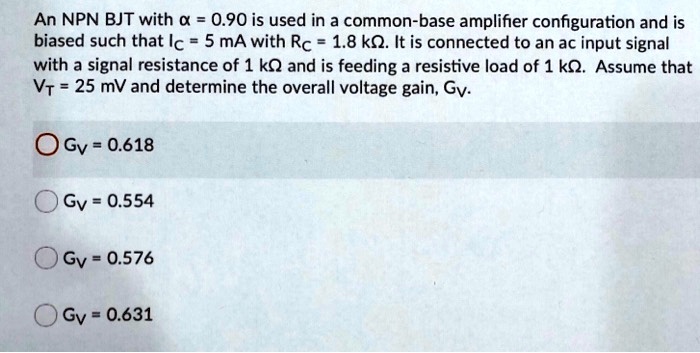

An NPN BJT with $alpha$ = 0.90 is used in a common-base amplifier configuration and is biased such that $I_c$ = 5 mA with $R_c$ = 1.8 k$Omega$. It is connected to an ac input signal with a signal resistance of 1 k$Omega$ and is feeding a resistive load of 1 k$Omega$. Assume that $V_T$ = 25 mV and determine the overall voltage gain, $G_v$. $G_v$ = 0.618 $G_v$ = 0.554 $G_v$ = 0.576 $G_v$ = 0.631
Added by Patrick U.
Close
Step 1
Calculate the transconductance,Gt: Gt=O.9O*Ic/Rc=5mA/1.8k=0.6 Show more…
Show all steps
Your feedback will help us improve your experience
Supreeta N and 88 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A CE amplifier utilizes a BJT with Ě = 100 is biased at Ic = 1 mA and has a collector resistance Rc = 5 k̦. Find Rin, Ro, and Avo. If the amplifier is fed with a signal source having a resistance of 5 k̦, and a load resistance RL = 5 k̦ is connected to the output terminal, find the resulting Av & Gv. If vĚ‚Ě° is to be limited to 5 mV, what are the corresponding vĚ‚sig and vĚ‚o with the load connected?
Madhur L.
An npn BJT with grounded emitter is operated with $V_{B E}$ $=0.700 \mathrm{V},$ at which the collector current is $0.5 \mathrm{mA}$. A $10-\mathrm{k} \Omega$ resistor connects the collector to a +10 -V supply. What is the resulting collector voltage $V_{C} ?$ Now, if a signal applied to the base raises $v_{B E}$ to $705 \mathrm{mV}$, find the resulting total collector current $i_{c}$ and total collector voltage $v_{c}$ using the exponential $i_{c}-v_{B E}$ relationship. For this situation, what are $v_{b c}$ and $v_{c}$ ? Calculate the voltage gain $v_{c} / v_{b e}$. Compare with the value obtained using the small-signal approximation, that is, $-g_{m} R_{C}$.
Manish J.
In the circuit given below, 3V, NMOS transistor VG is applied to the PMOS transistor input: Mosfet parameters: kn' (Wn /L)=kp' Wp/Lp = 1mA/V, Vtn = -Vtp= 1V, λn=λp=0 It is given as. According to this; Calculate the VO output voltage for VG = 1.5 V. VO VG
