Question

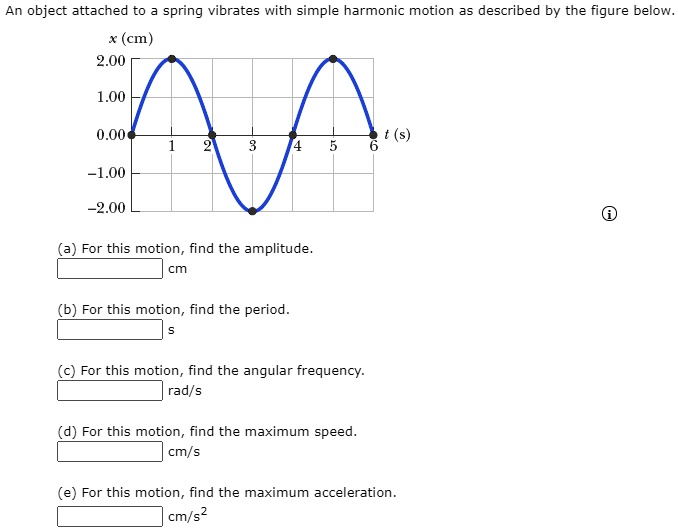

An object attached to a spring vibrates with simple harmonic motion as described by the figure below. x (cm) 2.00 1.00 0.00 t (s) 0 1 2 3 4 5 6 -1.00 -2.00 (a) For this motion, find the amplitude. cm (b) For this motion, find the period. s (c) For this motion, find the angular frequency. rad/s (d) For this motion, find the maximum speed. cm/s (e) For this motion, find the maximum acceleration. cm/s^2

          An object attached to a spring vibrates with simple harmonic motion as described by the figure below.
x (cm)
2.00
1.00
0.00
t (s)
0 1 2 3 4 5 6
-1.00
-2.00
(a) For this motion, find the amplitude.
cm
(b) For this motion, find the period.
s
(c) For this motion, find the angular frequency.
rad/s
(d) For this motion, find the maximum speed.
cm/s
(e) For this motion, find the maximum acceleration.
cm/s^2

An object attached to a spring vibrates with simple harmonic motion as described by the figure below.
x (cm)
2.00
1.00
0.00
t (s)
0 1 2 3 4 5 6
-1.00
-2.00
(a) For this motion, find the amplitude.
cm
(b) For this motion, find the period.
s
(c) For this motion, find the angular frequency.
rad/s
(d) For this motion, find the maximum speed.
cm/s
(e) For this motion, find the maximum acceleration.
cm/s^2

Added by Mar-A R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sri K

05/11/2022

Step 1

00 cm Period (T) = 1.00 s To find the angular frequency (ω): ω = 2π / T Show more…

Show all steps

Thanks for your feedback!

An object attached to a spring vibrates with simple harmonic motion as described by the figure below. (a) For this motion, find the amplitude. cm (b) For this motion, find the period. s (c) For this motion, find the angular frequency. rad/s (d) For this motion, find the maximum speed. cm/s (e) For this motion, find the maximum acceleration. cm/s^2
