An open wire transmission lines has R=5Ω/m, L= 5.2 x 10-8 H/m, G=6.2 x 10-3 mho/m, C=2.13 x10-13 F/m, frequency = 4GHz. Find characteristic impedance (Zo), phase velocity of propagation (vp), and propagation constant (𝛾).
Added by Melissa K.
Step 1
To find the characteristic impedance (Z₀), phase velocity of propagation (vₚ), and propagation constant (𝛾) for the given transmission line parameters, we will follow these steps: Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 63 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

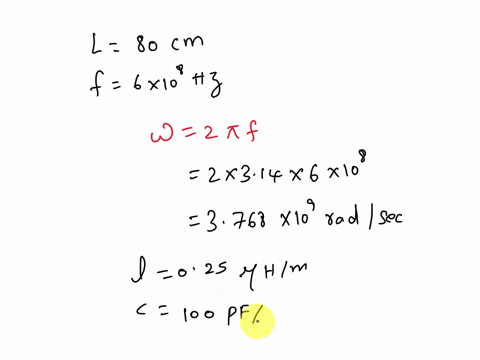

A lossless transmission line is 80 cm long and operates at a frequency of 600 MHz. The line parameters are L = 0.25 µH/m and C = 100 pF/m. Find the characteristic impedance, the phase constant, and the phase velocity. Z0 = √((R + jωL)/(G + jωC)) γ = √((R + jωL)(G + jωC)) = α + jβ β = ω√(LC) νp = ω/β Ans: 50 Ω, 18.85 rad/m, 2 x 10^8 m/s
Madhur L.
At an operating radian frequency of 500 Mrad/s, typical circuit values for a certain transmission line are: R = 0.2 ̤/m, L = 0.25 uH/m, G = 10 uS/m, and C = 100 pF/m. Find: (a) ̠; (b) ̡; (c) ̰; (d) vp; (e) Z0. Ans. 2.25 mNp/m; 2.50 rad/m; 2.51 m; 2 X 10^8m/sec; 50.0 - j0.0350 ̤
Adi S.
An open wire telephone line has R = 10 ohm/km, L = 3.7 mH/km, C = 8.3 nano F/km, and G = 0.4 micro mho/km. At a frequency of 1000 Hz, determine a. characteristic impedance; b. propagation constant; c. phase velocity.
