First, we need to find the resonant frequency, which is the frequency at which the current in th

Question

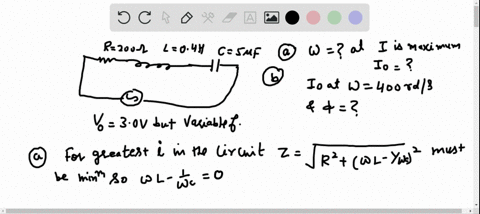

Analyzing an L-R-C Circuit. You have a 200 Ω resistor, a 0.400 H inductor, a 5.00 uF capacitor, and a variable-frequency ac source with an amplitude of 3.00 V. You connect all four elements together to form a series circuit. (a) At what frequency will the current in the circuit be greatest? What will be the current amplitude at this frequency? (b) What will be the current amplitude at an angular frequency of 400 rad/s? At this frequency, will the source voltage lead or lag the current?

          Analyzing an L-R-C Circuit. You have a 200 Ω resistor, a 0.400 H inductor, a 5.00 uF capacitor, and a variable-frequency ac source with an amplitude of 3.00 V. You connect all four elements together to form a series circuit. (a) At what frequency will the current in the circuit be greatest? What will be the current amplitude at this frequency? (b) What will be the current amplitude at an angular frequency of 400 rad/s? At this frequency, will the source voltage lead or lag the current?

Added by Willie W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Madhur L

08/28/2023

Step 1

The resonant frequency is given by the formula: $$f_0 = \frac{1}{2\pi\sqrt{LC}}$$ where L is the inductance, and C is the capacitance. Plugging in the given values: $$f_0 = \frac{1}{2\pi\sqrt{(0.400\,\text{H})(5.00\times10^{-6}\,\text{F})}}$$ Calculating the Show more…

Show all steps
