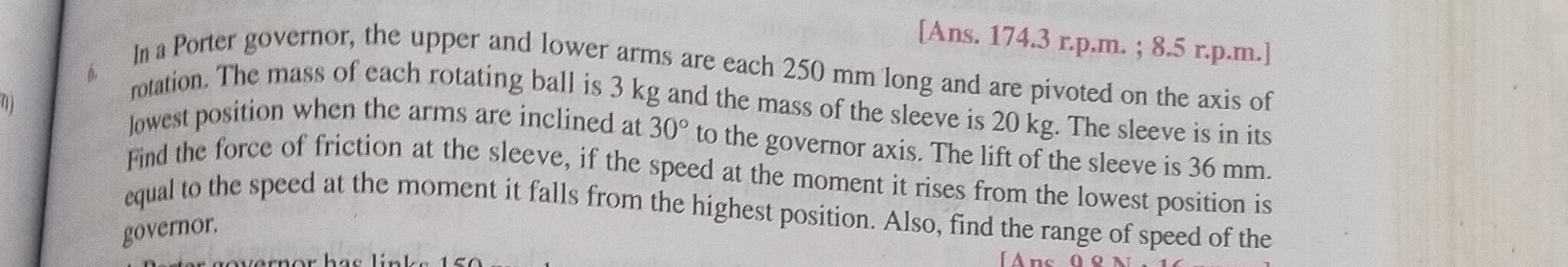

[Ans. 174.3 r.p.m. ; 8.5 r.p.m.] In a Porter governor, the upper and lower arms are each \( 250 \mathrm{~mm} \) long and are pivoted on the axis of rotation. The mass of each rotating ball is \( 3 \mathrm{~kg} \) and the mass of the sleeve is \( 20 \mathrm{~kg} \). The sleeve is in its lowest position when the arms are inclined at \( 30^{\circ} \) to the governor axis. The lift of the sleeve is \( 36 \mathrm{~mm} \). Find the force of friction at the sleeve, if the speed at the moment it rises from the lowest position is equal to the speed at the moment it falls from the highest position. Also, find the range of speed of the governor.
Added by Miranda J.
Close
Your feedback will help us improve your experience
Averell Hause and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In softball, the pitcher throws with the arm fully extended (straight at the elbow). In a fast pitch the ball leaves the hand with a speed of 139 $\mathrm{km} / \mathrm{h}$ . (a) Find the rotational kinetic energy of the pitcher's arm given its moment of inertia is 0.720 $\mathrm{kg} \cdot \mathrm{m}^{2}$ and the ball leaves the hand at a distance of 0.600 $\mathrm{m}$ from the pivot at the shoulder. (b) What force did the muscles exert to cause the arm to rotate if their effective perpendicular lever arm is 4.00 $\mathrm{cm}$ and the ball is 0.156 $\mathrm{kg}$ ?
The rotor (fiywheel) of a toy gyroscope has mass 0.140 $\mathrm{kg}$ . Its moment of inertia about its axis is $1.20 \times 10^{-4} \mathrm{kg} \cdot \mathrm{m}^{2}$ . The mass of the frame is 0.0250 $\mathrm{kg}$ . The gyroscope is supported on a single pivot (Fig. 10.50$)$ with its center of mass a horizontal distance of 4.00 $\mathrm{cm}$ from the pivot. The gyroscope is precessing in a horizontal plane at the rate of one revolution in 2.20 $\mathrm{s}$ . (a) Find the upward force exerted by the pivot. (b) Find the angular speed with which the rotor is spinning about its axis, expressed in rev/min. (c) Copy the diagram and draw vectors to show the angular momentum of the rotor and the torque acting on it.
The preliminary design of a unit for automatically reducing the speed of a freely rotating assembly is shown. Initially the unit is rotating freely about a vertical axis through $O$ at a speed of 600 rev/min with the arms secured in the positions shown by $A B .$ When the arms are released, they swing outward and become latched in the dashed positions shown. The disk has a mass of $30 \mathrm{kg}$ with a radius of gyration of $90 \mathrm{mm}$ about $O .$ Each arm has a length of $160 \mathrm{mm}$ and a mass of $0.84 \mathrm{kg}$ and may be treated as a uniform slender rod. Determine the new speed $N$ of rotation and calculate the loss $|\Delta E|$ of energy of the system. Would the results be affected by either the direction of rotation or the sequence of release of the rods?
