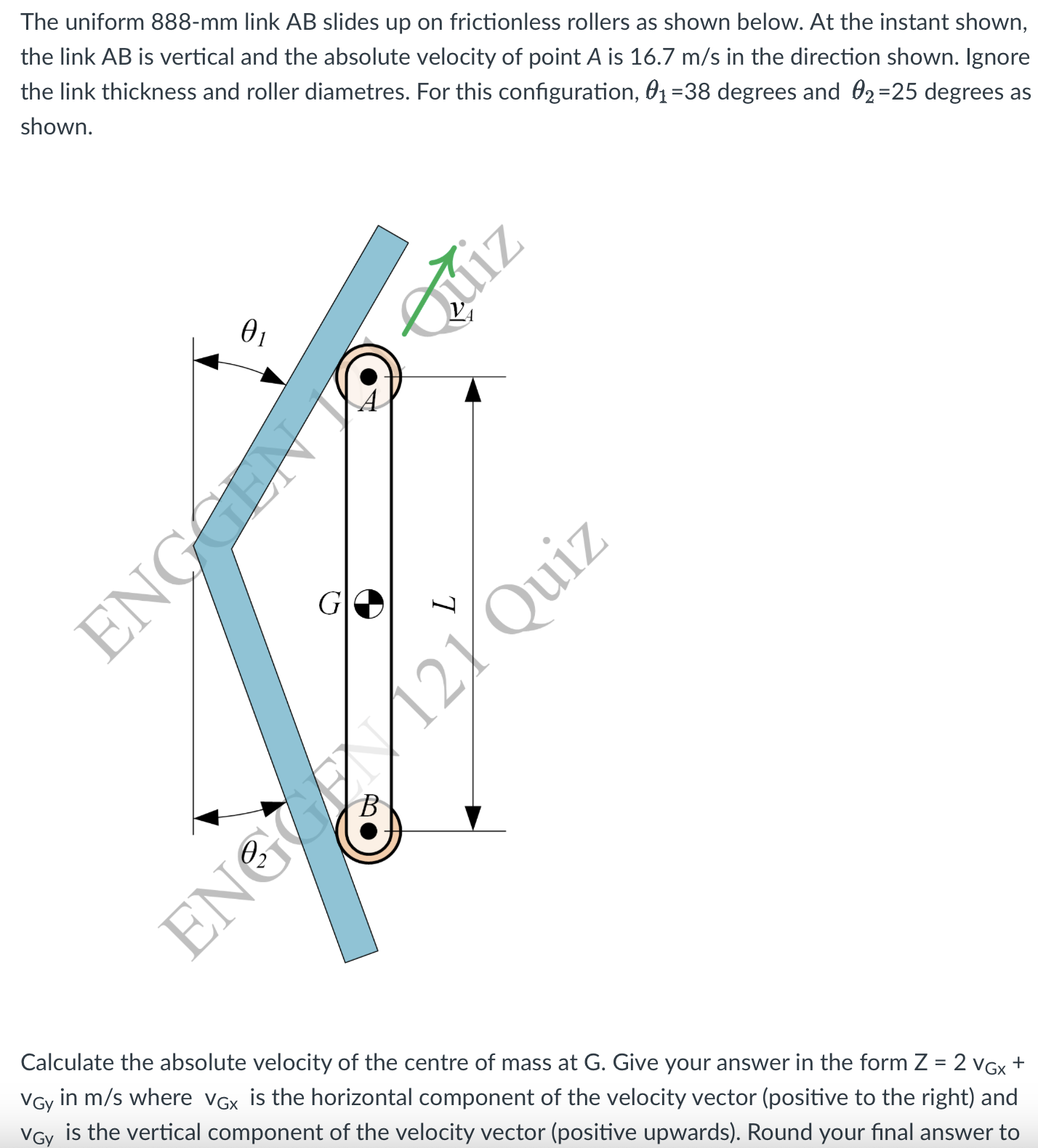

The uniform 888-mm link AB slides up on frictionless rollers as shown below. At the instant shown, the link \( A B \) is vertical and the absolute velocity of point \( A \) is \( 16.7 \mathrm{~m} / \mathrm{s} \) in the direction shown. Ignore the link thickness and roller diametres. For this configuration, \( \theta_{1}=38 \) degrees and \( \theta_{2}=25 \) degrees as shown. Calculate the absolute velocity of the centre of mass at \( G \). Give your answer in the form \( Z=2 v_{G x}+ \) \( \mathrm{v}_{\mathrm{G}_{Y}} \) in \( \mathrm{m} / \mathrm{s} \) where \( \mathrm{v}_{\mathrm{Gx}} \) is the horizontal component of the velocity vector (positive to the right) and \( \mathrm{v}_{\mathrm{Gy}} \) is the vertical component of the velocity vector (positive upwards). Round your final answer to
Added by Rajeev S.
Close
Step 1
First, we need to find the velocity of point B. Since point A is moving at 16.7 m/s at an angle of 38 degrees, we can find the horizontal and vertical components of its velocity: v_Ax = 16.7 * cos(38) = 13.1 m/s (to the right) v_Ay = 16.7 * sin(38) = 10.4 m/s Show more…
Show all steps
Your feedback will help us improve your experience
Shyam P and 77 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
In the arrangement shown in the Fig. $7.406$ below at a particular instant the roller is coming down with a speed of $12 \mathrm{~m} / \mathrm{s}^{2}$ and $C$ is moving up with $4 \mathrm{~m} / \mathrm{s}$. At the same instant it is also known that w.r.t. pulley $P$, block $A$ is moving down with speed $3 \mathrm{~m} / \mathrm{s}$. Determine the motion of block $B$ (velocity) w.r.t. ground. a. $4 \mathrm{~m} / \mathrm{s}$ in downward direction b. $3 \mathrm{~m} / \mathrm{s}$ in upward direction c. $7 \mathrm{~m} / \mathrm{s}$ in downward direction d. $7 \mathrm{~mm} / \mathrm{s}$ in upward direction
Forces and Kinetic Energy of Rolling Nonuniform cylindrical object. In Fig. $11-39,$ a cylindrical object of mass $M$ and radius $R$ rolls smoothly from rest down a ramp and onto a horizontal section. From there it rolls off the ramp and onto the floor, landing a horizontal distance $d=0.506 \mathrm{m}$ from the end of the ramp. The initial height of the object is $H=0.90 \mathrm{m}$; the end of the ramp is at height $h=0.10 \mathrm{m}$ . The object consists of an outer cylindrical shell (of a certain uniform density) that is glued to a central cylinder (of a different uniform density). The rotational inertia of the object can be expressed in the general form $I=\beta M R^{2},$ but $\beta$ is not 0.5 as it is for a cylinder of uniform density. Determine $\beta .$
