30) By cascading low-pass filters, _______ can be improved. A) bandwidth B) roll-off rate C) phase shift D) Q-rating (a) (b) (c) (d) 31) Refer to the figure above. Identify the active single-pole high-pass filter. A) (a) B) (b) C) (c) D) (d) 32) Refer to the figure above. The low-pass filter with a 20 dB/decade roll-off is A) (a). B) (b). C) (c). D) None of the above.

          30) By cascading low-pass filters, _______ can be improved.
A) bandwidth B) roll-off rate C) phase shift D) Q-rating

(a)
(b)
(c)
(d)

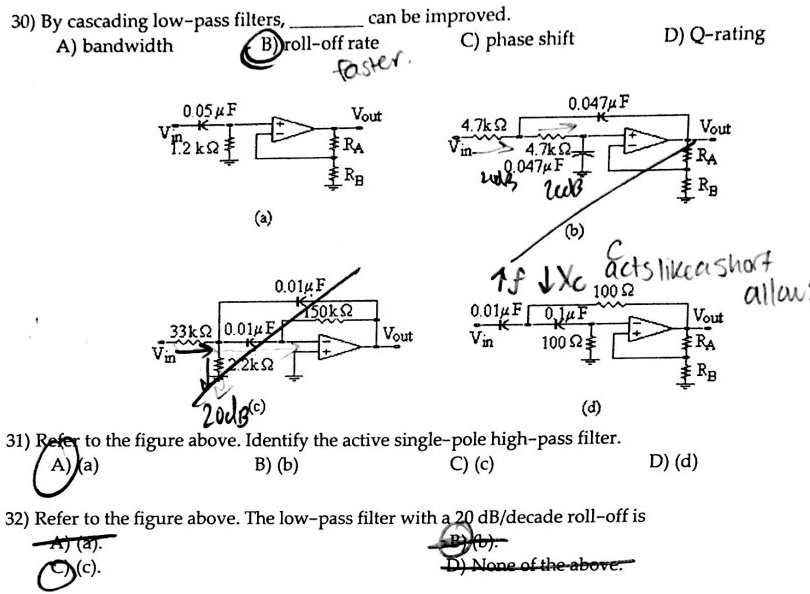

31) Refer to the figure above. Identify the active single-pole high-pass filter.
A) (a) B) (b) C) (c) D) (d)

32) Refer to the figure above. The low-pass filter with a 20 dB/decade roll-off is
A) (a). B) (b).
C) (c). D) None of the above.

30) By cascading low-pass filters, can be improved.
A) bandwidth B) roll-off rate C) phase shift D) Q-rating

(a)
(b)
(c)
(d)

31) Refer to the figure above. Identify the active single-pole high-pass filter.
A) (a) B) (b) C) (c) D) (d)

32) Refer to the figure above. The low-pass filter with a 20 dB/decade roll-off is
A) (a). B) (b).
C) (c). D) None of the above.
