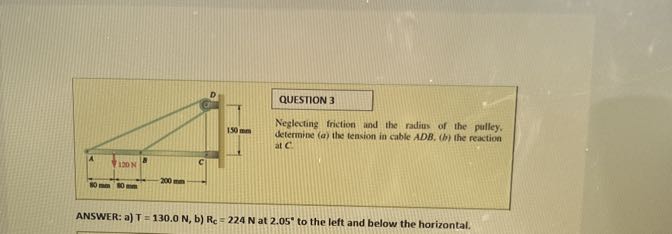

ANSWER: a) \( \mathrm{T}=130.0 \mathrm{~N} \), b) \( \mathrm{R}_{\mathrm{c}}=224 \mathrm{~N} \) at \( 2.05^{\circ} \) to the left and below the horizontal.
Added by Margaret P.
Close
Step 1
- The system consists of a cable ADB and a reaction at point C. - The given forces include a 100 N force acting horizontally at point B. - The geometry includes distances: AB = 100 mm, BC = 200 mm, and CD = 150 mm. Show more…
Show all steps
Your feedback will help us improve your experience
Kratika Bhadauria and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A telephone cable is clamped at A to the pole AB. Knowing that the tension in the left-hand portion of the cable is T1 = 800 lb, determine by trigonometry (a) the required tension T2 in the right-hand portion if the resultant R of the forces exerted by the cable at A is to be vertical, (b) the corresponding magnitude of R.
Kratika B.

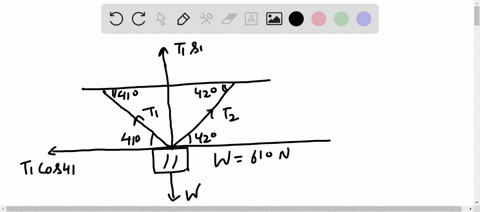

Consider the 610 N weight held by two cables shown below . The left-hand cable had tension T2 and makes an angle of 41° with the ceiling: The right-hand cable had tension T1 and makes an angle of 42° with the ceiling: a What is the tension in the cable labeled T1 slanted at an angle of 42? Answer in units of N. What is the tension in the cable labeled T2 slanted at an angle of 41°? Answer in units of N.
Khoobchandra A.
Vishal G.
