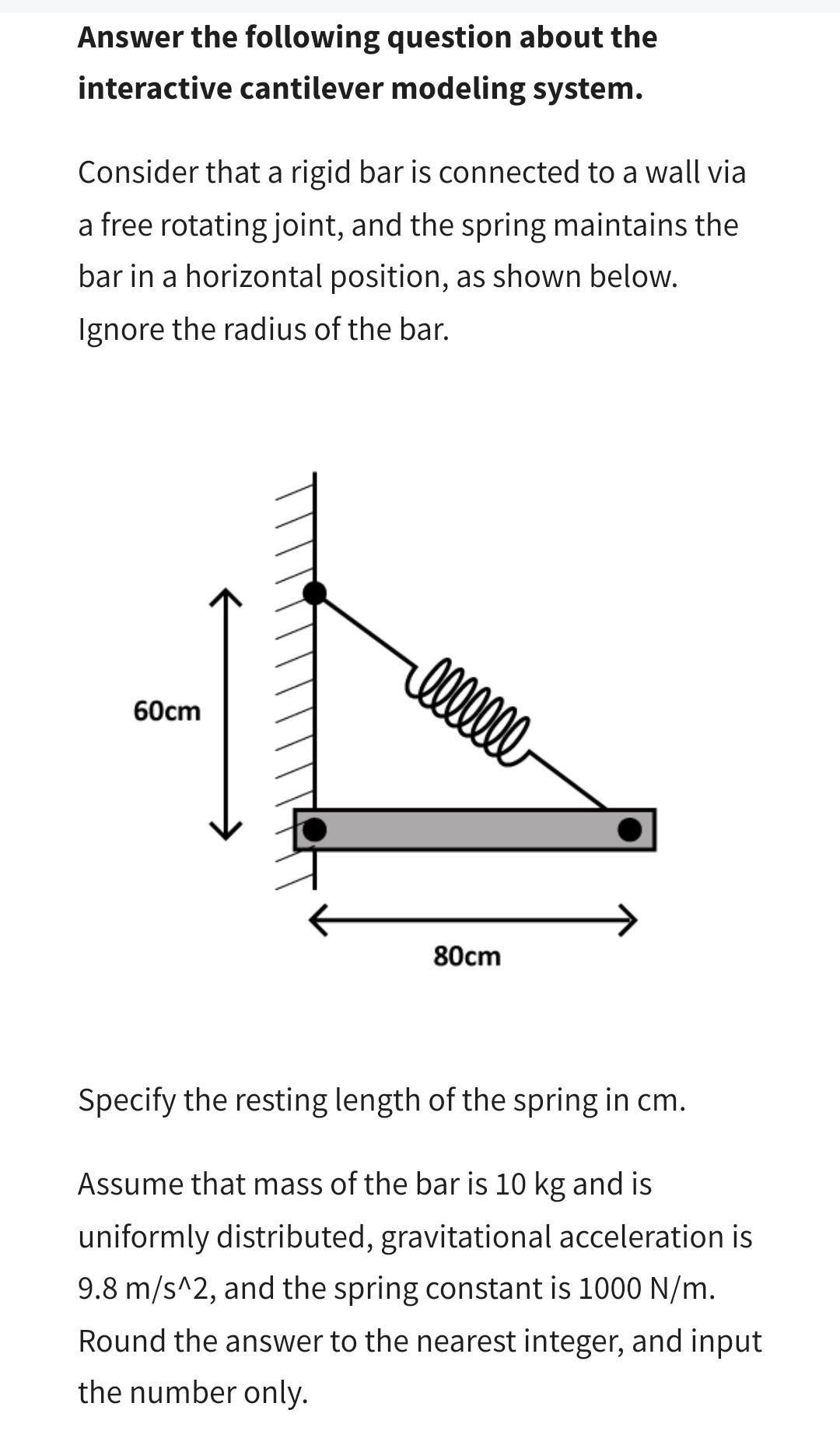

Answer the following question about the interactive cantilever modeling system. Consider that a rigid bar is connected to a wall via a free rotating joint, and the spring maintains the bar in a horizontal position, as shown below. Ignore the radius of the bar. Specify the resting length of the spring in \( \mathrm{cm} \). Assume that mass of the bar is \( 10 \mathrm{~kg} \) and is uniformly distributed, gravitational acceleration is \( 9.8 \mathrm{~m} / \mathrm{s}^{\wedge} 2 \), and the spring constant is \( 1000 \mathrm{~N} / \mathrm{m} \). Round the answer to the nearest integer, and input the number only.
Added by Jesse P.
Close
Step 1
We have a cantilever system where a rigid bar is horizontally balanced by a spring attached to its end and the wall. The goal is to find the resting length of the spring. Show more…
Show all steps
Your feedback will help us improve your experience
Ethan Deweese and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the angle $\theta$ for equilibrium and investigate the stability at this position. The bars each have a mass of $10 \mathrm{kg}$ and the spring has an unstretched length of $100 \mathrm{mm}.$

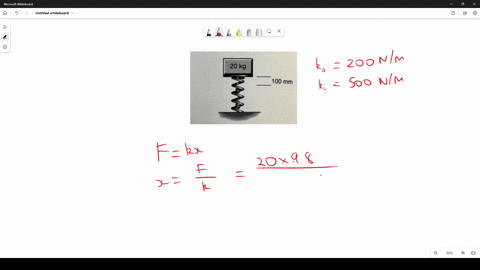

Determine the maximum distance that a 20 kg mass will fall if it is released from rest above a nested spring system. The outer spring system has a spring constant of 200 N/m while the inner spring constant has a constant of 500 N/m. The 100 mm indicates that the inner spring is engaged only after the outer spring is compressed 100 mm.
Ashwin B.
The uniform slender bar of mass $m$ pivots freely about a horizontal axis through $O .$ If the bar is released from rest in the horizontal position shown where the spring is unstretched, it is observed to rotate a maximum of $30^{\circ}$ clockwise. The spring constant $k=200 \mathrm{N} / \mathrm{m}$ and the distance $b=200 \mathrm{mm} .$ Determine $(a)$ the mass $m$ of the bar and $(b)$ the angular velocity $\omega$ of the bar when the angular displacement is $15^{\circ}$ clockwise from the release position.
