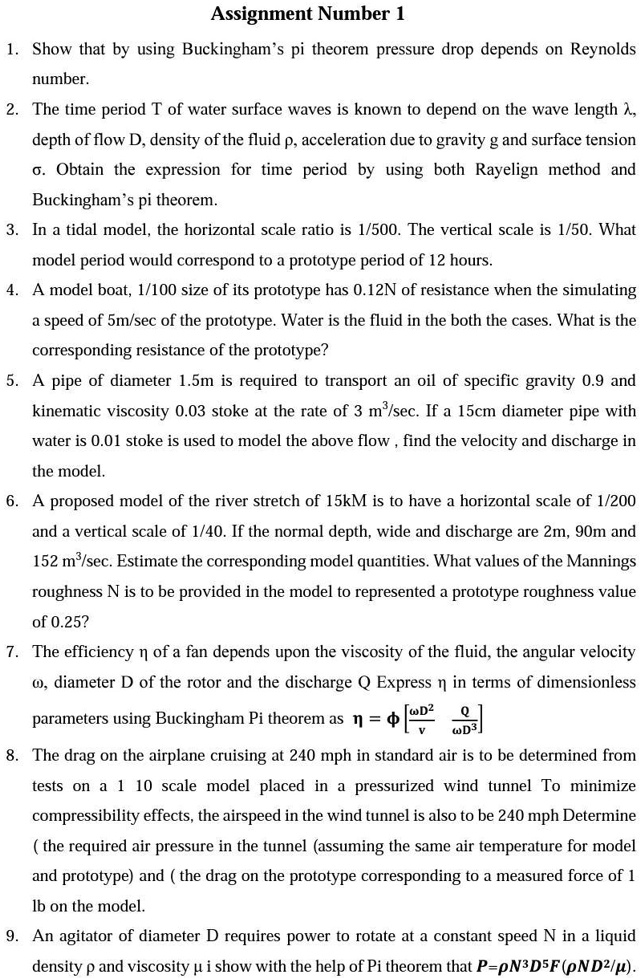

Assignment Number 1
1. Show that by using Buckingham’s pi theorem pressure drop depends on Reynolds number.
2. The time period T of water surface waves is known to depend on the wave length ?, depth of flow D, density of the fluid ?, acceleration due to gravity g and surface tension ?. Obtain the expression for time period by using both Rayelign method and Buckingham’s pi theorem.
3. In a tidal model, the horizontal scale ratio is 1/500. The vertical scale is 1/50. What model period would correspond to a prototype period of 12 hours.
4. A model boat, 1/100 size of its prototype has 0.12N of resistance when the simulating a speed of 5m/sec of the prototype. Water is the fluid in the both the cases. What is the corresponding resistance of the prototype?
5. A pipe of diameter 1.5m is required to transport an oil of specific gravity 0.9 and kinematic viscosity 0.03 stoke at the rate of 3 m³/sec. If a 15cm diameter pipe with water is 0.01 stoke is used to model the above flow , find the velocity and discharge in the model.
6. A proposed model of the river stretch of 15kM is to have a horizontal scale of 1/200 and a vertical scale of 1/40. If the normal depth, wide and discharge are 2m, 90m and 152 m³/sec. Estimate the corresponding model quantities. What values of the Mannings roughness N is to be provided in the model to represented a prototype roughness value of 0.25?
7. The efficiency ? of a fan depends upon the viscosity of the fluid, the angular velocity ?, diameter D of the rotor and the discharge Q Express ? in terms of dimensionless parameters using Buckingham Pi theorem as ? = ?[?D²/?, Q/?D³]
8. The drag on the airplane cruising at 240 mph in standard air is to be determined from tests on a 1 10 scale model placed in a pressurized wind tunnel To minimize compressibility effects, the airspeed in the wind tunnel is also to be 240 mph Determine ( the required air pressure in the tunnel (assuming the same air temperature for model and prototype) and ( the drag on the prototype corresponding to a measured force of 1 lb on the model.
9. An agitator of diameter D requires power to rotate at a constant speed N in a liquid density ? and viscosity ? i show with the help of Pi theorem that P=?N³D?F(?ND²/?).
