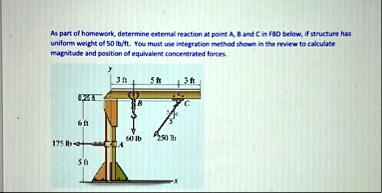

As part of homework, determine external reaction at point A, B and C in FBD below, if structure has uniform weight of 50 lb/ft. You must use integration method shown in the review to calculate magnitude and position of equivalent concentrated forces. 3 ft 5 ft 3 ft 0.25 ft B C 6 ft 60 lb 250 lb 175 lb 5 ft

Name: as part of homework determine external reaction at point a b and c in fbd below if structure has uniform weight of 50 lbft you must use integration method shown in the review to calculate ma 48983
Uploaded: 2022-04-04T19:23:34-08:00
Duration: 4 min 2 s
Channel: Sufiyan Alam
Description: as part of homework determine external reaction at point a b and c in fbd below if structure has uniform weight of 50 lbft you must use integration method shown in the review to calculate ma 48983

          As part of homework, determine external reaction at point A, B and C in FBD below, if structure has uniform weight of 50 lb/ft. You must use integration method shown in the review to calculate magnitude and position of equivalent concentrated forces.
3 ft
5 ft
3 ft
0.25 ft
B
C
6 ft
60 lb
250 lb
175 lb
5 ft

as part of homework determine external reaction at point a b and c in fbd below if structure has uniform weight of 50 lbft you must use integration method shown in the review to calculate ma 48983

Added by Shaun L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Sufiyan Alam

04/04/2022

Step 1

The structure has a uniform weight of 50 lb/ft. There is a concentrated force of 60 lb acting downwards at point B. There is a concentrated force of 250 lb acting at point C, at an angle of 30 degrees from the horizontal. There is a concentrated force of 175 lb Show more…
