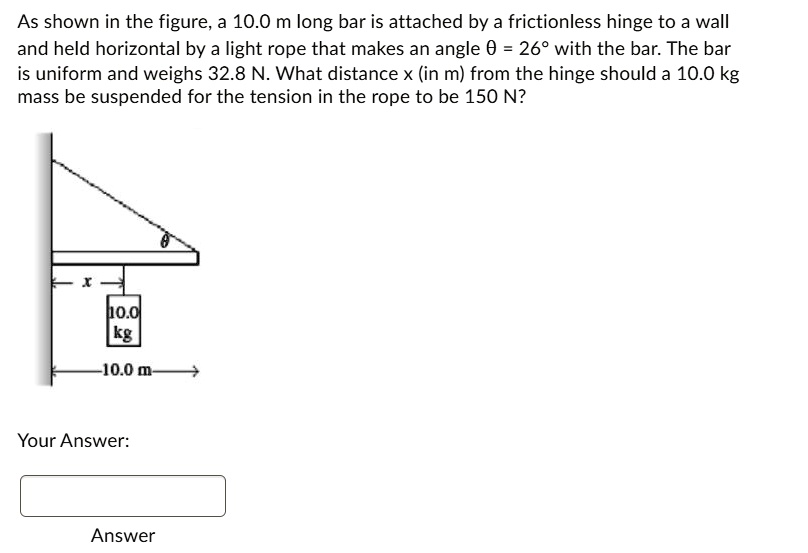

As shown in the figure, a 10.0 m long bar is attached by a frictionless hinge to a wall and held horizontal by a light rope that makes an angle ? = 26° with the bar. The bar is uniform and weighs 32.8 N. What distance x (in m) from the hinge should a 10.0 kg mass be suspended for the tension in the rope to be 150 N?

Name: As shown in the figure, a 10.0 m long bar is attached by a frictionless hinge to a wall and held horizontal by a light rope that makes an angle ? = 26° with the bar. The bar is uniform and weighs 32.8 N. What distance x (in m) from the hinge should a 10.0 kg mass be suspended for the tension in the rope to be 150 N?
Uploaded: 2021-09-26T18:38:43-08:00
Duration: 3 min 39 s
Channel: Paul Gabriel
Description: As shown in the figure, a 10.0 m long bar is attached by a frictionless hinge to a wall and held horizontal by a light rope that makes an angle ? = 26° with the bar. The bar is uniform and weighs 32.8 N. What distance x (in m) from the hinge should a 10.0 kg mass be suspended for the tension in the rope to be 150 N?

          As shown in the figure, a 10.0 m long bar is attached by a frictionless hinge to a wall and held horizontal by a light rope that makes an angle ? = 26° with the bar. The bar is uniform and weighs 32.8 N. What distance x (in m) from the hinge should a 10.0 kg mass be suspended for the tension in the rope to be 150 N?

As shown in the figure, a 10.0 m long bar is attached by a frictionless hinge to a wall and held horizontal by a light rope that makes an angle ? = 26° with the bar. The bar is uniform and weighs 32.8 N. What distance x (in m) from the hinge should a 10.0 kg mass be suspended for the tension in the rope to be 150 N?

Added by Tasha V.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Paul Gabriel

09/26/2021

Step 1

- The weight of the bar (W_bar) = 32.8 N, acting at the center of the bar (5.0 m from the hinge). - The weight of the 10.0 kg mass (W_mass) = 10.0 kg × 9.8 m/s² = 98 N, acting at a distance x from the hinge. - The tension in the rope (T) = 150 N, making an Show more…

Show all steps

Thanks for your feedback!

As shown in the figure, a 10.0 m long bar is attached by a frictionless hinge to a wall and held horizontal by a light rope that makes an angle ̘ = 26° with the bar. The bar is uniform and weighs 32.8 N. What distance x (in m) from the hinge should a 10.0 kg mass be suspended for the tension in the rope to be 150 N?
