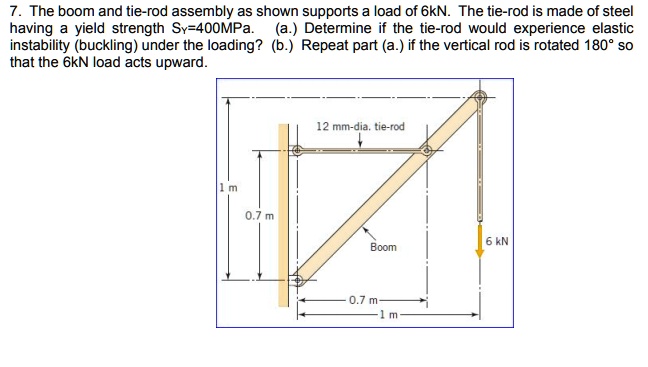

7. The boom and tie-rod assembly as shown supports a load of 6kN. The tie-rod is made of steel h

Name: 7. The boom and tie-rod assembly as shown supports a load of 6kN. The tie-rod is made of steel having a yield strength SY=400MPa. (a.) Determine if the tie-rod would experience elastic instability (buckling) under the loading? (b.) Repeat part (a.) if the vertical rod is rotated 180° so that the 6kN load acts upward.
Uploaded: 2024-05-21T11:22:42-08:00
Duration: 3 min 1 s
Channel: Adi S
Description: 7. The boom and tie-rod assembly as shown supports a load of 6kN. The tie-rod is made of steel having a yield strength SY=400MPa. (a.) Determine if the tie-rod would experience elastic instability (buckling) under the loading? (b.) Repeat part (a.) if the vertical rod is rotated 180° so that the 6kN load acts upward.

Question

Frank Deng · Accepted Answer

First, we need to calculate the critical buckling load for the tie-rod. The formula for the crit
