Question

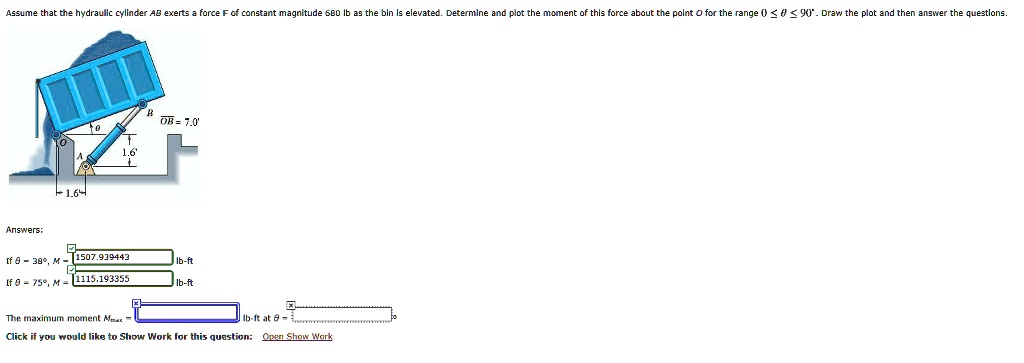

Assume that the hydraulic cylinder AB exerts a force F of constant magnitude 680 lb as the bin is elevated. Determine and plot the moment of this force about the point O for the range $0 \leq \theta \leq 90^\circ$. Draw the plot and then answer the questions. Answers: If $\theta = 38^\circ$, $M = 1507.939443$ lb-ft If $\theta = 75^\circ$, $M = 1115.193355$ lb-ft The maximum moment $M_{max} = $ lb-ft at $\theta = $

          Assume that the hydraulic cylinder AB exerts a force F of constant magnitude 680 lb as the bin is elevated. Determine and plot the moment of this force about the point O for the range $0 \leq \theta \leq 90^\circ$. Draw the plot and then answer the questions.
Answers:
If $\theta = 38^\circ$, $M = 1507.939443$ lb-ft
If $\theta = 75^\circ$, $M = 1115.193355$ lb-ft
The maximum moment $M_{max} = $ lb-ft at $\theta = $
Show more…
Assume that the hydraulic cylinder AB exerts a force F of constant magnitude 680 lb as the bin is elevated. Determine and plot the moment of this force about the point O for the range 0 ≤θ≤ 90^∘. Draw the plot and then answer the questions. Answers: If θ = 38^∘, M = 1507.939443 lb-ft If θ = 75^∘, M = 1115.193355 lb-ft The maximum moment Mmax = lb-ft at θ =

Added by Sofia H.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
Assume that the hydraulic cylinder AB exerts a force F of constant magnitude 680 lb as the bin is elevated. Determine and plot the moment of this force about the point O for the range 0 to 90 degrees. Draw the plot and then answer the questions. To: OB = 7.0 ft θ = 1.6 degrees Answers: If = 38.1507.939443 lb-ft If6 = 75 lb-ft M = 1115.193355 lb-ft The maximum moment is M = 1115.193355 lb-ft.
Close icon
Play audio
Feedback
Powered by NumerAI
Ivan Kochetkov Jennifer Stoner
Danielle Fairburn verified

Adriano Chikande and 89 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question
*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs
*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.
*

Recommended Videos

-
calculate-the-maximum-static-load-of-the-hydraulic-cylinder-at-point-d-the-platform-weight-is-650-lb-acting-downward-the-dimensions-are-as-follows-l-20-ft-abx-1-ft-aby-2-ft-bc-6-ft-theta-60-98478

Calculate the maximum static load of the hydraulic cylinder. At point D, the platform weight is 650 lb acting downward. The dimensions are as follows: L = 20 ft, ABX = 1 ft, ABY = 2 ft, BC = 6 ft, Theta = 60 degrees.

Adi S.
i4in-1-for-the-excavator-arm-shown-a-w-1000-ib-x-10-in-y-15-ing-4in-w-x-y-ib-in_-w-8-in-in7-determine-the-force-in-the-hydraulic-cylinder-bd-and-the-force-in-links-ab-and-be-when-the-bucket-81237

For the excavator arm shown: A W = 1000 lb X = 10 in Y = 15 in 4 in W = X = Y = lb in_ W 8 in; | & in;7 Determine the force in the hydraulic cylinder BD and the force in links AB and BE when the bucket is held in the position shown.

Sri K.

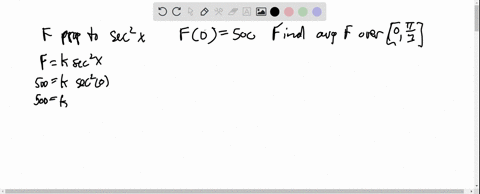

the-force-f-in-newtons-of-a-hydraulic-cylinder-in-a-press-is-proportional-to-the-square-of-sec-where-ti-x-is-the-distance-in-meters-that-the-cylinder-is-extended-in-its-cycle-the-domain-of-f-19794
