Assuming a completely discharged capacitor in the beginning, during the charging process of a capacitor, after $t = \tau$, give the voltage level in relation to the maximum voltage level $U_\tau = x \cdot U_{final}$. State a value for x.
Added by Brenda D.
Close
Step 1
Step 1: The voltage across a charging capacitor as a function of time is given by: $U(t) = U_{final}(1 - e^{-t/RC})$ where: $U(t)$ is the voltage at time t $U_{final}$ is the final voltage across the capacitor $R$ is the resistance in the circuit $C$ is the Show more…
Show all steps
Your feedback will help us improve your experience
Vishal Gupta and 65 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

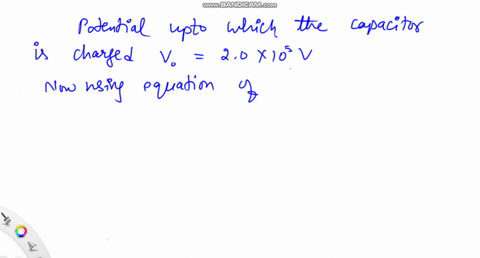

A capacitor that has been charged to $2.0 \times 10^{5} \mathrm{~V}$ is allowed to discharge through a resistor. What will be the voltage across the capacitor after five time constants have elapsed? We know, via [Eq. (34.10)], that after $n$ time constants, $q=$ $\mathrm{q}_{\infty}(0.368)^{\mathrm{n}} .$ Because $v$ is proportional to $q$ (that is, $\left.v=\mathrm{q} / \mathrm{C}\right)$, we may write $$ u n_{=5}=\left(2.0 \times 10^{5} \mathrm{~V}\right)(0.368)^{5}=1.4 \mathrm{kV} $$
A capacitor that has been charged to $2.0 \times 10^{5} \mathrm{~V}$ is allowed to discharge through a resistor. What will be the voltage across the capacitor after five time constants have elapsed? We know (p. 374) that after $n$ time constants, $q=q_{\infty}(0.368)^{n}$. Because $v$ is proportional to $q$ (that is, $v=q / C$ ), we may write $$ v_{n=5}=\left(2.0 \times 10^{5} \mathrm{~V}\right)(0.368)^{5}=1.4 \mathrm{kV} $$

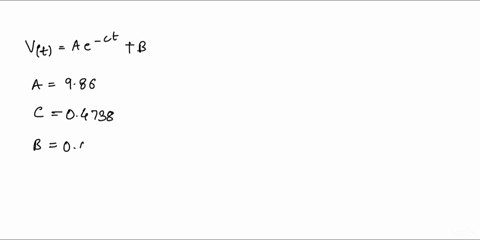

The voltage V(t) of a discharging capacitor with fit parameters is given by V(t) = A * Exp(-Ct), where A = 86, C = 0.4738, and B = 0.0056. Figure 2 shows the maximum voltage and the experimental time constant. Calculate the maximum charge if the charge at time t = 0 is 43 kn, the charge at the time constant, and the charge at t = 2 seconds. Sketch the graph.
Adi S.
