Exercise 1: Automation

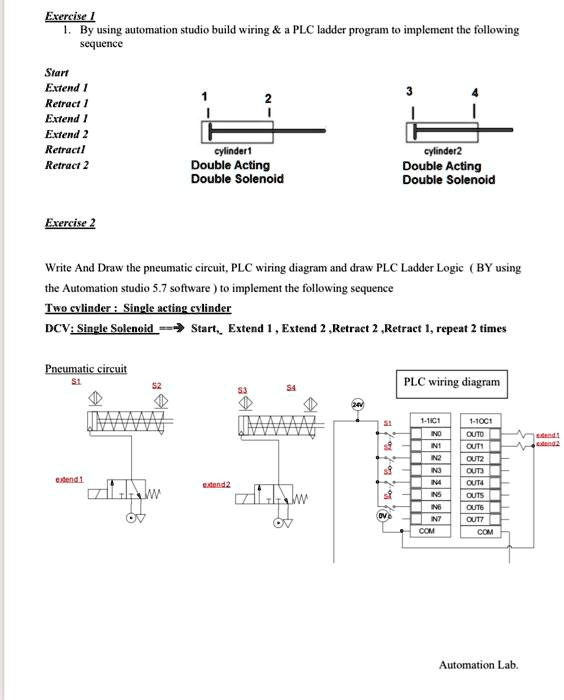

By using Automation Studio, build wiring and a PLC ladder program to implement the following sequence:
Sah Extend 1 Retract 1 Extend 1 Extend 2 Retract 1 Retract 2
Cylinder 1: Double Acting Double Solenoid
Cylinder 2: Double Acting Double Solenoid
Exercise 2: Automation
Write and draw the pneumatic circuit, PLC wiring diagram, and draw PLC ladder logic using Automation Studio 5.7 software to implement the following sequence:
Two cylinders: Single acting cylinder DCV Single Solenoid
Start Extend 1, Extend 2 Retract 2 Retract 1, repeat 2 times
Pneumatic Circuit:
S1
S2
PLC Wiring Diagram:
S3
51
1-11C1
1-1OC1 OUTD
INO IN1 IN2 N INA
dendt stend?
OUT2 OUT3 OUT4 OUT5 OUT6 OUT7
Henck
Extend 2
W
ovo
NE NT COM
Automation Lab.
