(b) A double effect evaporator is to be used to concentrate a 10.0 wt % organic solution to 30.0 wt %. Steam is available at 3.0 bar absolute and the pressure in the evaporation space in the final effect is 0.60 bar absolute. The overall heat transfer coefficients are 1.8 and 2.0 kW m?² K?¹ in the first and second effect, respectively. Feed solution entering the first effect at 50 °C and flow rate of 0.5 kg s?¹. The specific heat capacites of the liquid solution at feed, first effect, and second effect are 3.0, 3.5, and 3.8 kJ kg?¹ K?¹, respectively. Assume that there is no appreciable boiling point rise and the heat transfer rates are equal in both effects. Determine: (i) The evaporating temperature in the first effect. [4 MARKS] (ii) Composition of liquid leaving the first effect. [6 MARKS] (iii) The flowrate of steam required. [3 MARKS] (iv) Heat transfer surface area in the first effect. [4 MARKS]
Added by Kelsey A.
Close
Step 1
0 C. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 90 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

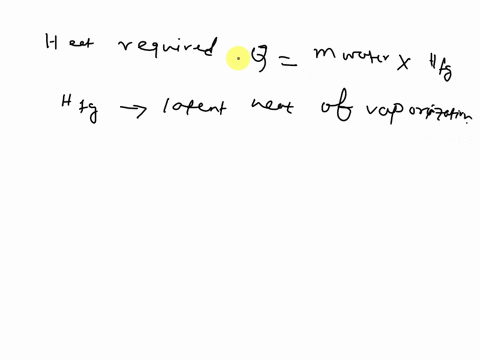

A single effect evaporator is used to concentrate 10 000 kg / hr of tomato juice from 5% total solids to 30% total solids. The juice enters the Evaporator at 20 ° C. The evaporator is operated on Steam (80% quality) at 143.27 kPa. The vacuum in the evaporator allows the juice to boil at 75 ° C. The specific heat of the dilute material is 4.1 kJ / (kg ° C) and the concentrate product is 3.1 kJ / (kg ° C). Count it a. Steam demand rate = ....... kg / hour. b. Steam economy when condensate temperature is released at 75 ° C = ...... (kg of water evaporated / kg of steam)
Madhur L.
For concentrating the dilute solution from 9.5% solid to 40.5% solid, a single-effect evaporator is used. The concentrated product is produced with 425 kg solid per hour. The feed enters the evaporator at 60 °C and steam is supplied at 2 atm gauge pressure (saturation temperature 135 °C, latent heat of vaporization 517 kcal/kg). The operating pressure of the evaporator is 100 mm Hg absolute (boiling point is 51 °C, latent heat of vaporization 567 kcal/kg). Data: overall heat transfer coefficient = 420 kcal/h m^2 °C, specific heat of the dilute solution = 0.8 kcal/kg °C. Use only the data given in the problem. Neglect the boiling point elevation. Calculate the following. a) Heat load of the evaporator (in kcal/hr) Answer 1 b) Steam consumption rate (kg/hr) Answer 2 c) Surface area of the evaporator (in m^2) Answer 3 d) New value of capacity (in kg/hr) if the pressure of the evaporator raised to 300 mmHg (boiling point is 77 °C, latent heat of vaporization 555 kcal/kg)
