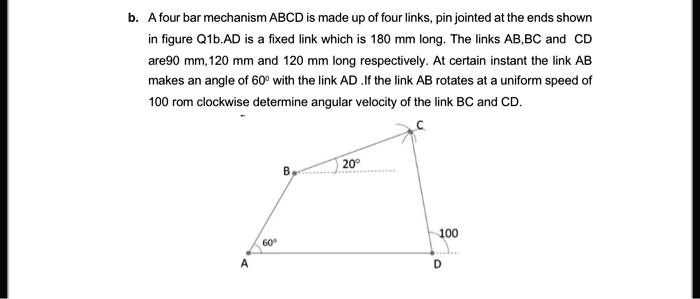

b. A four bar mechanism ABCD is made up of four links, pin jointed at the ends shown in figure Q1b.AD is a fixed link which is 180 mm long. The links AB,BC and CD are90 mm,120 mm and 120 mm long respectively. At certain instant the link AB makes an angle of 60° with the link AD .If the link AB rotates at a uniform speed of 100 rpm clockwise determine angular velocity of the link BC and CD.
Added by Jose Ignacio M.
Close
Step 1
We know that it rotates at a uniform speed of 100 rpm clockwise. To convert this to radians per second, we use the formula: Angular velocity (in radians per second) = (Angular velocity in rpm) * (2π radians / 1 minute) * (1 minute / 60 seconds) Angular velocity Show more…
Show all steps
