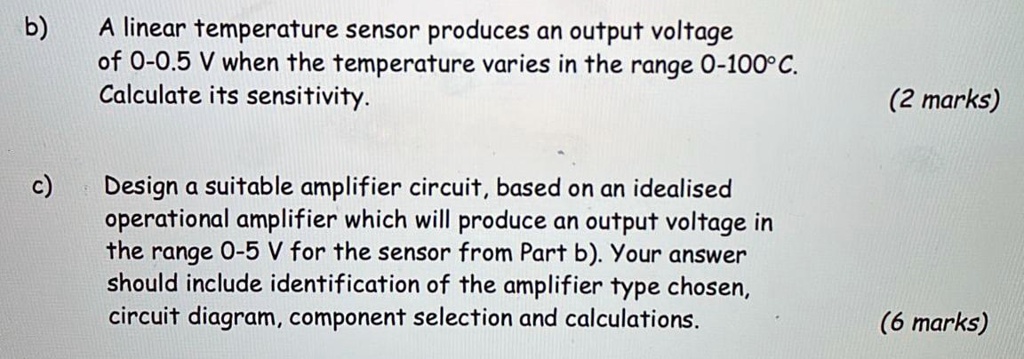

b) A linear temperature sensor produces an output voltage of 0-0.5 V when the temperature varies in the range 0-100°C. Calculate its sensitivity. c) Design a suitable amplifier circuit, based on an idealised operational amplifier which will produce an output voltage in the range 0-5 V for the sensor from Part b). Your answer should include identification of the amplifier type chosen, circuit diagram, component selection and calculations.

          b) A linear temperature sensor produces an output voltage
of 0-0.5 V when the temperature varies in the range 0-100°C.
Calculate its sensitivity.

c) Design a suitable amplifier circuit, based on an idealised
operational amplifier which will produce an output voltage in
the range 0-5 V for the sensor from Part b). Your answer
should include identification of the amplifier type chosen,
circuit diagram, component selection and calculations.

b) A linear temperature sensor produces an output voltage
of 0-0.5 V when the temperature varies in the range 0-100°C.
Calculate its sensitivity.

c) Design a suitable amplifier circuit, based on an idealised
operational amplifier which will produce an output voltage in
the range 0-5 V for the sensor from Part b). Your answer
should include identification of the amplifier type chosen,
circuit diagram, component selection and calculations.

Added by Cassandra R.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Supreeta N

11/18/2023

Step 1

Sensitivity is defined as the change in output (voltage in this case) per unit change in input (temperature in this case). Given that the output voltage changes from 0 to 0.5 V over a temperature range of 0 to 100°C, the sensitivity (S) can be calculated as Show more…
