B C D 2 m I J A E H G F -1.5 m-1.5 m-1.5 m-1.5 m 6 kN 6 kN The force in member HG of the truss loaded as shown is: 5.73 kN (C) 5.73 kN (T) 3.38 kN (C) 3.38 kN (T) None of the above 2 m
Added by Aitor F.
Close
Step 1
Step 1: Consider the joint G. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 81 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
6. [6-42] Determine the force in members BC, HC, and HG. State if these members are in tension or compression. Ans: FHG = 17.5 kN (C), FHC = 5.41 kN (C), FBC = 19.1 kN (T)
Adi S.

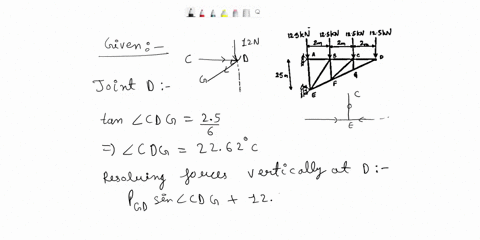

For the following truss, the force in members GD and CD are most nearly: F) GD = 32.5 kN (T); CD: 30.0 kN (C) G) GD = 30.0 kN (T); CD: 32.5 kN (C) H) GD = 30.0 kN (C); CD: 32.5 kN (T) J) GD = 32.5 kN (C); CD: 30.0 kN (T)
Consider the truss (Figure 1). Suppose that F' = 13.5 kN. Part A: Determine the force in member BC. State this member's tension or compression. Express your answer to three significant figures and include the appropriate units. Enter a negative value if it is in tension. Value: Units: Part B: Determine the force in member HC. State this member's tension or compression. Express your answer to three significant figures and include the appropriate units. Enter a negative value if it is in tension. Value: Units:
