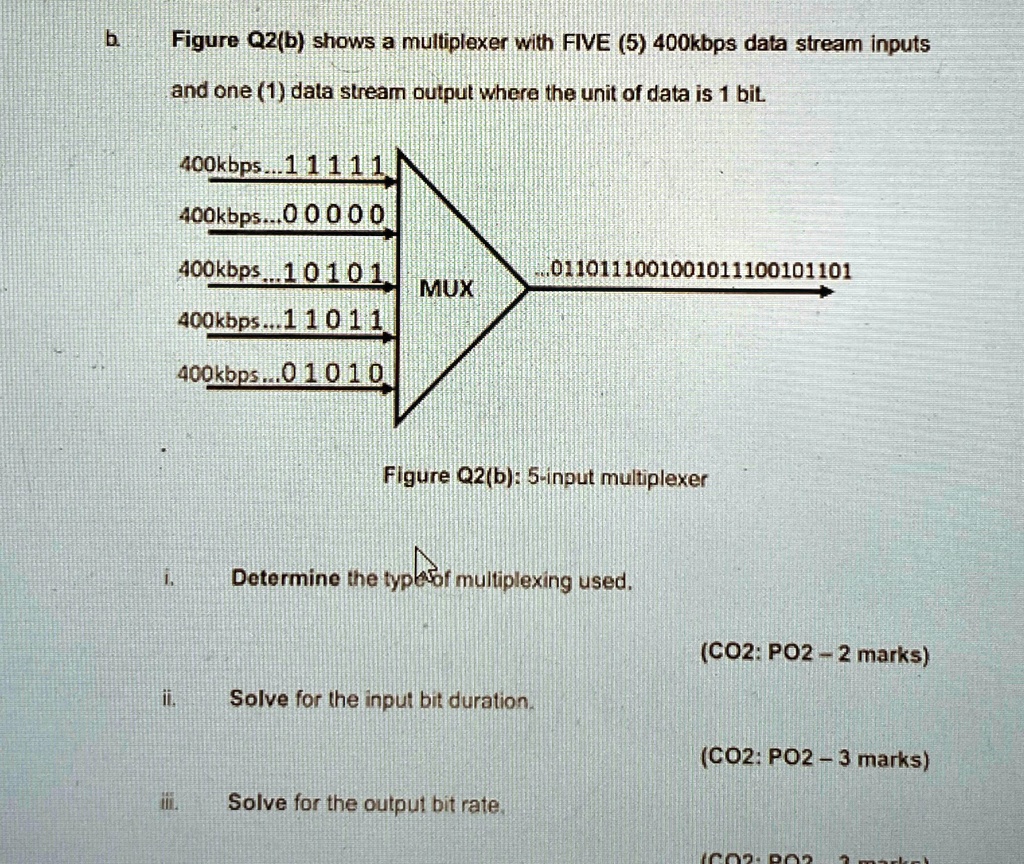

b. Figure Q2(b) shows a multiplexer with FIVE (5) 400kbps data stream inputs and one (1) data stream output where the unit of data is 1 bit. 400kbps...11111 400kbps...00000 400kbps...10101 400kbps...11011 400kbps...01010 MUX ...0110111001001011100101101 Figure Q2(b): 5-input multiplexer i. Determine the type of multiplexing used. (CO2: PO2 - 2 marks) ii. Solve for the input bit duration. (CO2: PO2 - 3 marks) iii. Solve for the output bit rate.
Added by Jose W.
Close
Step 1
The image shows a multiplexer (MUX) with five input data streams, each having a rate of 400 kbps. The output stream is formed by combining bits from these input streams. Let's observe the output sequence: "...0110111001001011100101101". Let's look at the input Show more…
Show all steps
