(b) Find the moment of inertia of the T shape about the x and y axes (5 marks). y 20 mm 60 mm 30 mm 30 mm 30 mm x
Added by Brandon H.
Close
Step 1
The T-shape can be divided into two rectangles: 1. A top flange (Rectangle 1) 2. A vertical web (Rectangle 2) Let's define the dimensions and coordinates for each rectangle. **Rectangle 1 (Top Flange):** Width ($b_1$) = 30 mm + 30 mm + 30 mm = 90 mm Height Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 81 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the moment of inertia Ix of the shaded area a) About the x-axis b) About the y-axis
Narayan H.

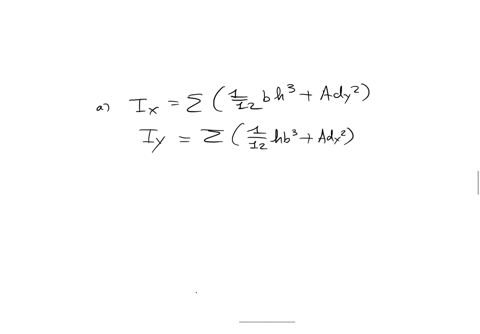

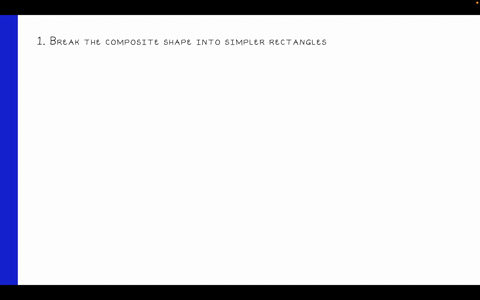

Calculate the moment of inertia of the composite area below about: a) The x- and y-axes shown (Ix and Iy). b) The x- and y-axes through the centroid of the area (Ix and Iy).
