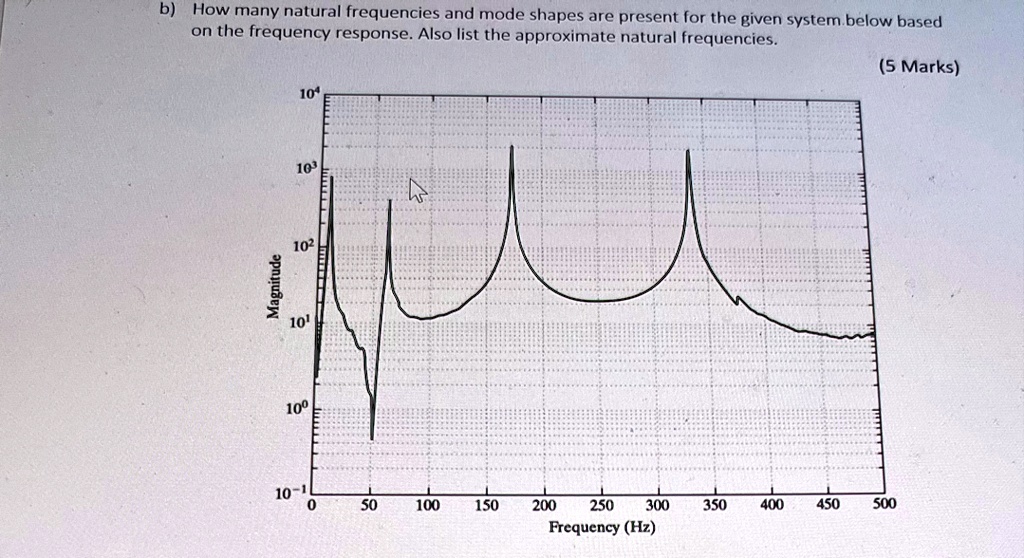

b) How many natural frequencies and mode shapes are present for the given system below based on the frequency response. Also list the approximate natural frequencies. (5 Marks) Magnitude $10^4$ $10^3$ $10^2$ $10^1$ $10^0$ $10^{-1}$ 0 50 100 150 200 250 300 350 400 450 500 Frequency (Hz)

Name: b how many natural frequencies and mode shapes are present for the given system below based on the frequency response also list the approximate natural frequencies 5 marks magnitude 104 103 42022
Uploaded: 2025-06-10T19:36:46-08:00
Duration: 1 min 26 s
Channel: Andreas Papavassiliou
Description: b how many natural frequencies and mode shapes are present for the given system below based on the frequency response also list the approximate natural frequencies 5 marks magnitude 104 103 42022

          b) How many natural frequencies and mode shapes are present for the given system below based on the frequency response. Also list the approximate natural frequencies.
(5 Marks)
Magnitude
$10^4$
$10^3$
$10^2$
$10^1$
$10^0$
$10^{-1}$
0
50
100
150
200
250
300
350
400
450
500
Frequency (Hz)

b how many natural frequencies and mode shapes are present for the given system below based on the frequency response also list the approximate natural frequencies 5 marks magnitude 104 103 42022

Added by Shawn L.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Andreas Papavassiliou

06/10/2025

Step 1

Natural frequencies correspond to the peaks (local maxima) in the magnitude of the frequency response function. Each peak represents a resonance, which occurs at a natural frequency. The number of natural frequencies is equal to the number of distinct peaks Show more…
