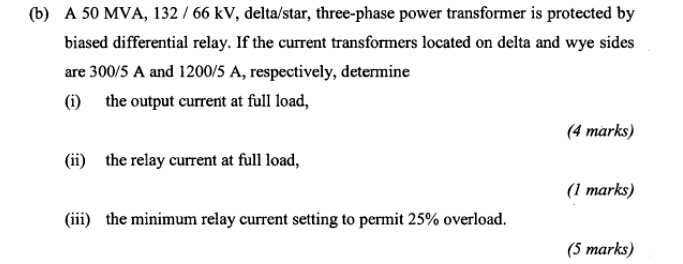

(b) A 50 MVA, 132 / 66 kV, delta/star, three-phase power transformer is protected by biased differential relay. If the current transformers located on delta and wye sides are 300/5 A and 1200/5 A, respectively, determine (i) the output current at full load, (ii) the relay current at full load, (iii) the minimum relay current setting to permit 25% overload.
Added by Dustin T.
Close
Step 1
4 A Since the transformer is delta/star connected, the current in the delta side (HV side) is √3 times the line current. Therefore, the current in the HV winding, I_HV = 218.4 * √3 = 378.3 A The current transformer (CT) on the HV side has a ratio of 300/5. Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 91 other Physics 102 Electricity and Magnetism educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
A step-down delta-star transformer, with per-phase turns ratio of 5, is fed from a 3-phase, 1100 V, 50 Hz source. The secondary of this transformer, through a 3-pulse type rectifier, feeds an R load of 10 Ω. Find the maximum value of the load current (phase).
Adi S.
Sri K.

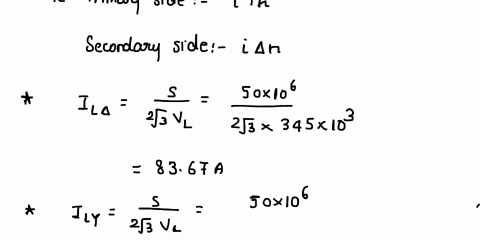

A three phase wye delta connected 50 MVA, 345/34.5 kv transformer is protected by differential protection. What is the ct ratio on thee low side of the transformer for differential protection such that the circulating current will not exceed 5A 1000:5 900:5 800:5 1200:5
