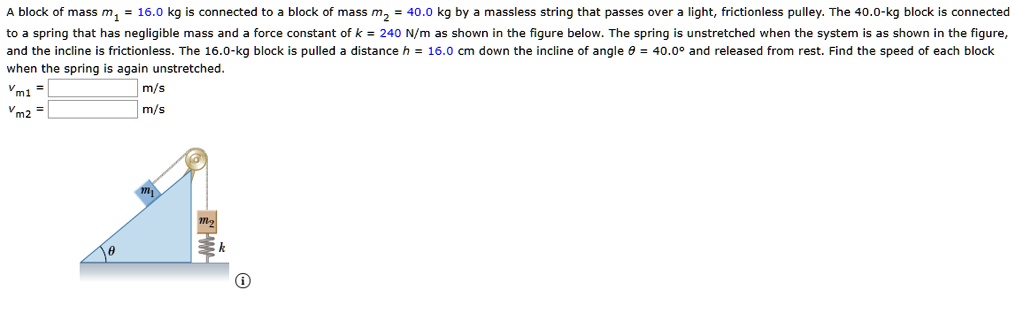

A block of mass m? = 16.0 kg is connected to a block of mass m? = 40.0 kg by a massless string that passes over a light, frictionless pulley. The 40.0-kg block is connected to a spring that has negligible mass and a force constant of k = 240 N/m as shown in the figure below. The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The 16.0-kg block is pulled a distance h = 16.0 cm down the incline of angle ? = 40.0° and released from rest. Find the speed of each block when the spring is again unstretched. v_m1 = m/s v_m2 = m/s

          A block of mass m? = 16.0 kg is connected to a block of mass m? = 40.0 kg by a massless string that passes over a light, frictionless pulley. The 40.0-kg block is connected to a spring that has negligible mass and a force constant of k = 240 N/m as shown in the figure below. The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The 16.0-kg block is pulled a distance h = 16.0 cm down the incline of angle ? = 40.0° and released from rest. Find the speed of each block when the spring is again unstretched.
v_m1 = m/s
v_m2 = m/s

Show more…
A block of mass m? = 16.0 kg is connected to a block of mass m? = 40.0 kg by a massless string that passes over a light, frictionless pulley. The 40.0-kg block is connected to a spring that has negligible mass and a force constant of k = 240 N/m as shown in the figure below. The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The 16.0-kg block is pulled a distance h = 16.0 cm down the incline of angle ? = 40.0° and released from rest. Find the speed of each block when the spring is again unstretched.
vm1 = m/s
vm2 = m/s

Added by Justin A.

Close

University Physics with Modern Physics
University Physics with Modern Physics
Hugh D. Young 14th Edition
AceChat toggle button
Close icon
Ace pointing down

Please give Ace some feedback

Your feedback will help us improve your experience

Thumb up icon Thumb down icon
Thanks for your feedback!
Profile picture
A block of mass m₁ = 16.0 kg is connected to a block of mass mā‚‚ = 40.0 kg by a massless string that passes over a light, frictionless pulley. The 40.0-kg block is connected to a spring that has negligible mass and a force constant of k = 240 N/m as shown in the figure below. The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The 16.0-kg block is pulled a distance h = 16.0 cm down the incline of angle Īø = 40.0° and released from rest. Find the speed of each block when the spring is again unstretched. v_m1 = m/s v_m2 = m/s
Close icon
Play audio
Feedback
Powered by NumerAI
Kathleen Carty Jennifer Stoner
David Collins verified

Penny Riley and 55 other subject Physics 101 Mechanics educators are ready to help you.

Ask a new question

*

Labs

-

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

*

Key Concepts

-
Key Concept
Premium Feature
Explore the core concept behind this problem.
Play button
Key Concept
Premium Feature
Explore the core concept behind this problem.
Your browser does not support the video tag.

*

Recommended Videos

-
a-block-of-mass-m1-200-kg-is-connected-to-a-block-of-mass-m2-300-kg-by-a-massless-string-that-passes-over-a-light-frictionless-pulley-the-300-kg-block-is-connected-to-a-spring-that-has-negli-58183

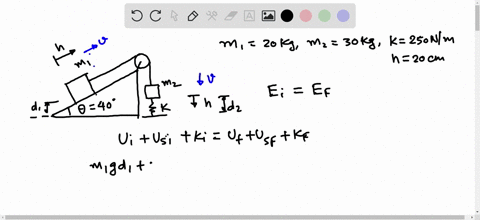

A block of mass m1 = 20.0 kg is connected to a block of mass m2 = 30.0 kg by a massless string that passes over a light, frictionless pulley. The 30.0-kg block is connected to a spring that has negligible mass and a force constant of k = 250 N/m as shown in Figure P8.64. The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The 20.0-kg block is pulled a distance h = 20.0 cm down the incline of angle θ = 40° and released from rest. Find the speed of each block when the spring is again unstretched.

Prabhu R.

a-200-kg-block-is-connected-to-a-300-mathrmkg-block-by-a-string-that-passes-over-a-light-frictionles

A 20.0 -kg block is connected to a $30.0-\mathrm{kg}$ block by a string that passes over a light frictionless pulley. The $30.0-\mathrm{kg}$ block is connected to a spring that has negligible mass and a force constant of $250 \mathrm{N} / \mathrm{m},$ as shown in Figure $\mathrm{P} 8.59$ . The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The $20.0-\mathrm{kg}$ block is pulled 20.0 $\mathrm{cm}$ down the incline (so that the $30.0-\mathrm{kg}$ block is 40.0 $\mathrm{cm}$ above the floor) and released from rest. Find the speed of each block when the $30.0-\mathrm{kg}$ block is 20.0 $\mathrm{cm}$ above the floor (that is, when the spring is unstretched).

Physics for Scientists and Engineers with Modern Physics

a-200-kg-block-is-connected-to-a-300-mathrmkg-block-by-a-string-that-passes-over-a-light-frictionles

A 20.0 -kg block is connected to a $30.0-\mathrm{kg}$ block by a string that passes over a light frictionless pulley. The $30.0-\mathrm{kg}$ block is connected to a spring that has negligible mass and a force constant of $250 \mathrm{N} / \mathrm{m},$ as shown in Figure $\mathrm{P} 8.59$ . The spring is unstretched when the system is as shown in the figure, and the incline is frictionless. The $20.0-\mathrm{kg}$ block is pulled 20.0 $\mathrm{cm}$ down the incline (so that the $30.0-\mathrm{kg}$ block is 40.0 $\mathrm{cm}$ above the floor) and released from rest. Find the speed of each block when the $30.0-\mathrm{kg}$ block is 20.0 $\mathrm{cm}$ above the floor (that is, when the spring is unstretched).

Physics for Scientists and Engineers with Modern Physics


*

Recommended Textbooks

-
University Physics with Modern Physics

University Physics with Modern Physics

Hugh D. Young 14th Edition
achievement 1,398 solutions
Physics: Principles with Applications

Physics: Principles with Applications

Douglas C. Giancoli 7th Edition
achievement 1,591 solutions
Fundamentals of Physics

Fundamentals of Physics

David Halliday, Robert Resnick , Jearl Walker 10th Edition
achievement 1,938 solutions

*

Transcript

-
00:01 We'd like to find the speed of each block.
00:04 So our total energy is our sum of our potential and our gravitational potential energy.
00:09 So let's find our total energy.
00:12 That's going to be one -half kx squared plus mass 2, gravity times height.
00:17 So we can plug in 1 -half times 240 times 0 .16 squared, plus 40 times 9 .8 times our 0 .16 meters.
00:29 So let's plug this into a calculator to find our total energy.
00:33 We have one -half times 240 times .16 squared, plus 40 times 9 .8 times .16 gives us 65 .7 joules as our total energy.
00:47 Now we want to find our total kinetic energy.
00:51 Our kinetic energy is one -half mass 1v squared plus 1⁄2v squared.
00:58 So this will be one half times the sum of our masses, which is 16 plus 40, so that's 56 v squared, or 28 v squared...
